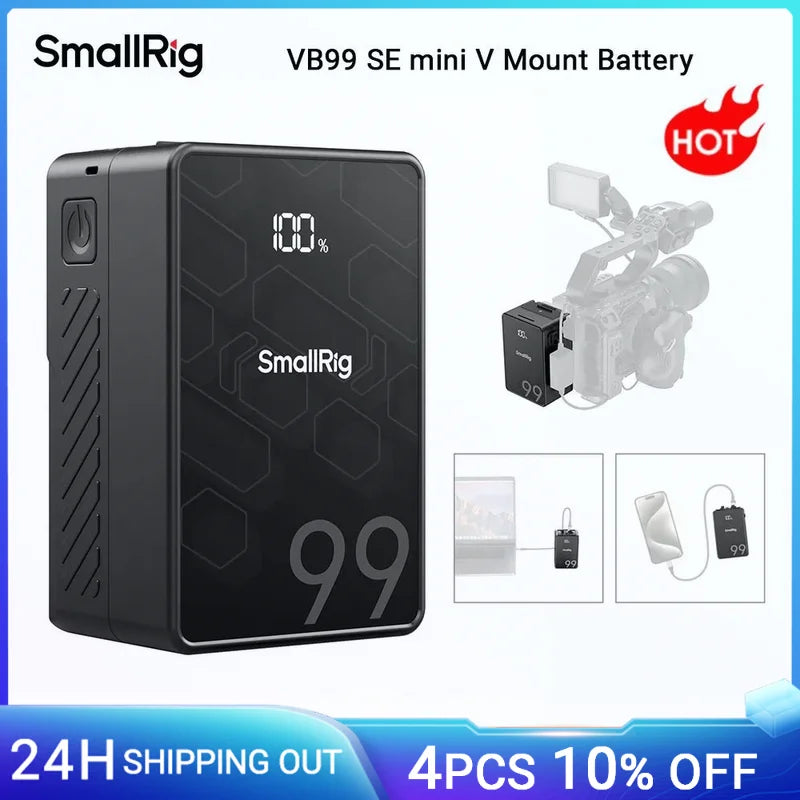

VB99 SE Mini V-Mount Battery 99Wh / 6800Mah V Mount Battery with PD65W USB-C Fast Charging for Camera Camcorder Monitor

4823 Product Description

I. Product Name in Package: SmallRig VB99 SE mini V Mount Battery 4608 / 4823

II. Product Name in Marketing: SmallRig VB99 SE mini V Mount Battery 4608 / 4823

III. Key Features:

1.BMS intelligent chip enables 65W (Max) fast charging, allowing for a full charge in just 2.5 hours;

2.Top-class LG battery cells ensure safe and stable performance through repeated charging and discharging;

3.Featuring a highly integrated design for enhanced portability and reduced weight;

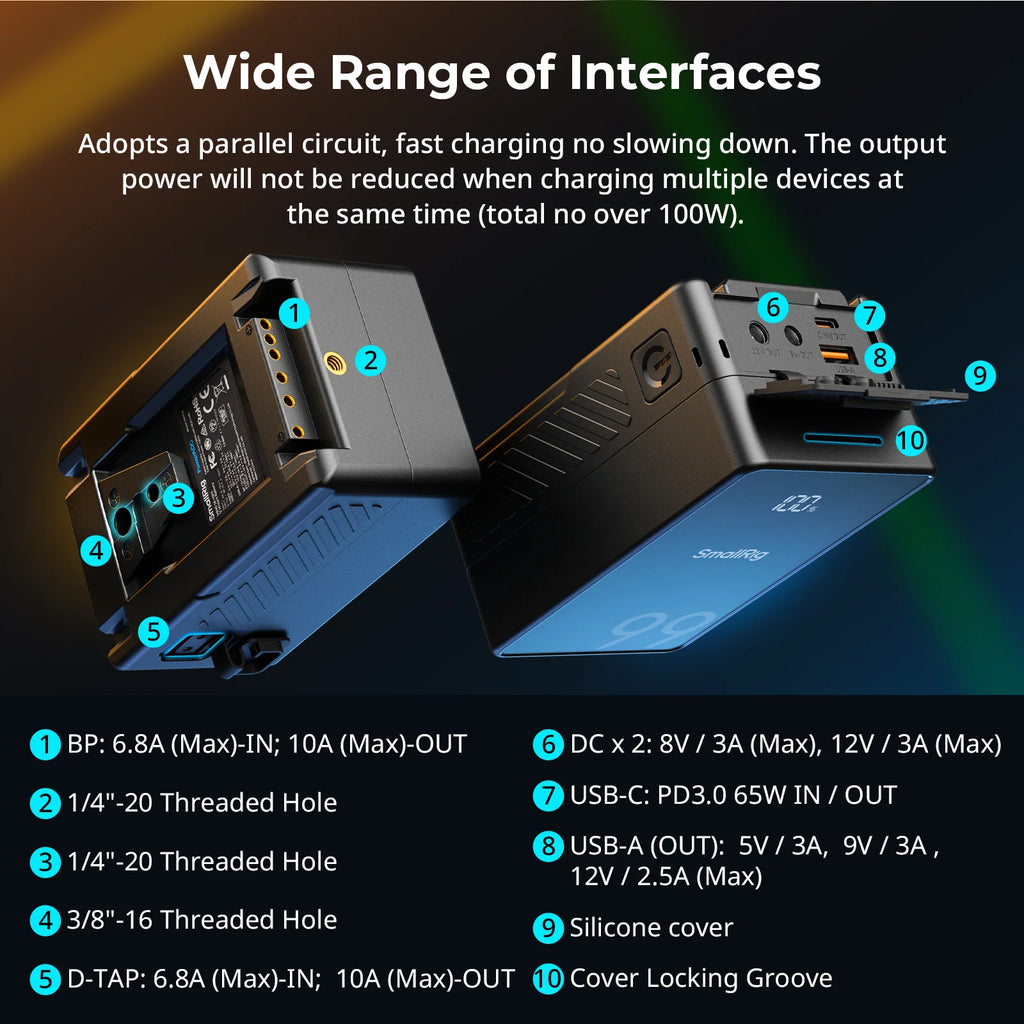

4.Equipped with multiple interfaces including BP x 1, USB-C x 1, D-Tap x 1, USB-A x 1, 8V-OUT x 1, 12V-OUT x 1, each featuring an independent circuit design to support simultaneous fast charging for USB-C and USB-A devices;

5.OLED screen accurately displays power information and battery status.

IV. Description

SmallRig VB99 SE mini V Mount Battery 4608 / 4823 4608 / 4823 is a compact V-mount battery featuring a highly integrated design that effectively reduces the battery's overall size, making it lightweight and portable. It features LG A-grade 18650 high-rate cells, ensuring accurate capacity, cycle performance, and exceptional stability. Designed to meet international standards such as MSDS / UN38.3 / IEC 62133 / UL2054 / UL 62368, it has obtained certifications including FCC / CE / RoHS / ISED / RCM / PSE / KC, ensuring safe and reliable operation for users. The battery is equipped with a BP, a D-Tap, an 8V-OUT DC, a 12V-OUT DC, a USB-C, and a USB-A ports offering a wide range of interfaces for powering multiple devices simultaneously. This includes cameras, mirrorless cameras, monitors, transmitters, video lights, smartphones, tablets, laptops, and more, providing integrated and efficient power supply for all your needs. The battery features a highly integrated fast-charging protocol chip, MCU, boost/buck control chip, and Battery Management System (BMS), offering multiple protections including overcurrent, short circuit, over-temperature, and over-voltage. Additionally, it supports various fast-charging protocols such as PD, QC, and PPS, and enables 65W USB-C bi-directional PD fast charging. The battery exterior is made of fire-resistant PC material, heat-resistant, and flame-retardant, ensuring durability. It features an OLED screen that clearly displays battery level, remaining usage time, voltage, power, and other information, allowing you to accurately monitor the battery status. Featuring a suite of robust safety features, this device instills the confidence to capture every memorable moment with precision and reliability.

V. Compatibility

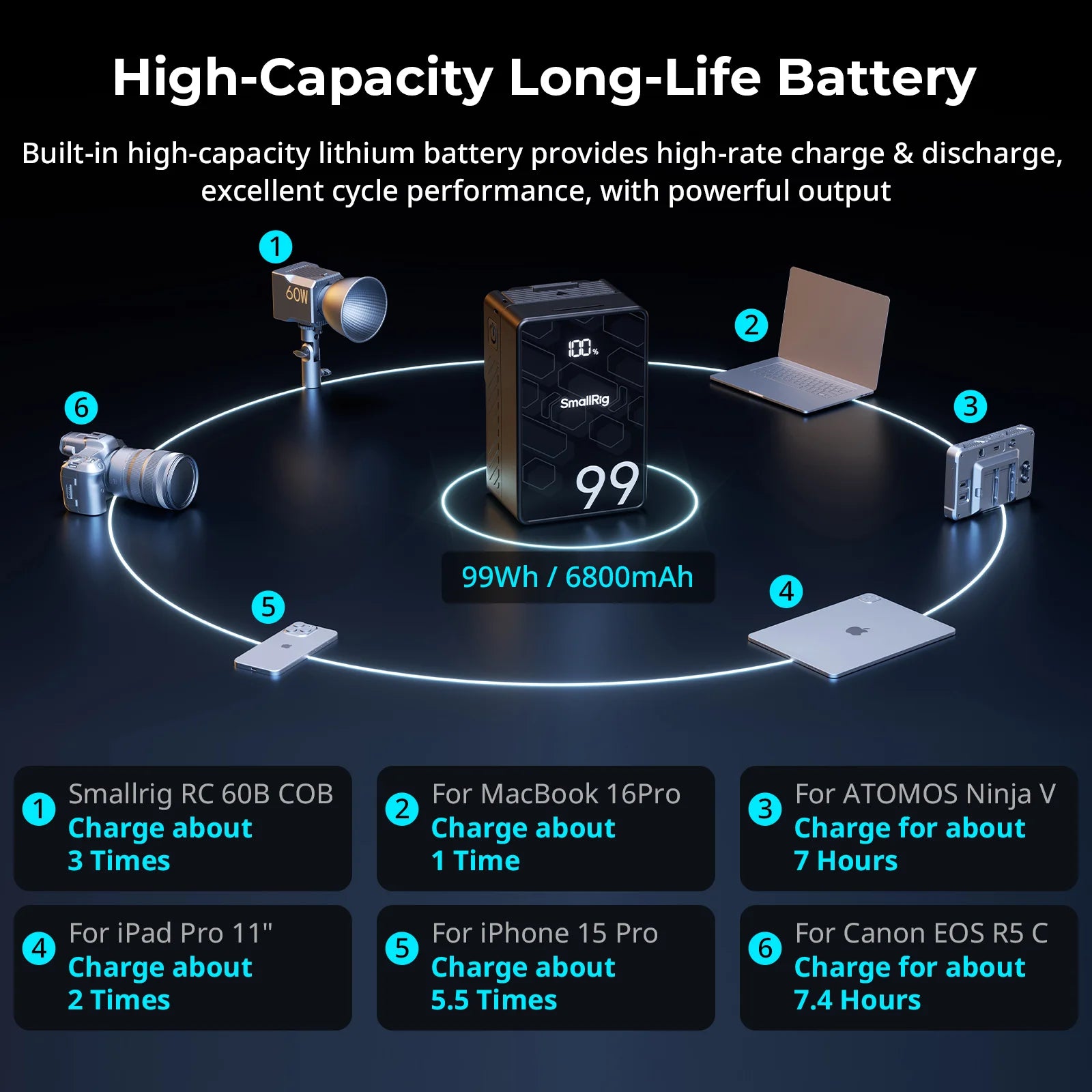

MILC, camcorder, camera, monitor, follow focus, image transmitter, LED video light, cell phone, tablet, laptop, etc.

VI. Certification

FCC CE RoHS ISED RCM PSE KC

VII. In the Box

VB99 SE mini V Mount Battery x 1

User Manual x 1

Operation Guide x 1

Guarantee Card x 1

VIII. Specifications

Items Specifications

Material(s): Fire-Resistant PC Material

Capacity 14.54V 6800mAh 98.872Wh

Rated Discharge Power 100W

Input USB-C 65W（Max）

D-Tap / BP 6.8A（Max）

Output USB-C 5V⎓3A﹑9V⎓3A﹑12V⎓3A﹑15V⎓3A﹑20V⎓3.25A（Max）

USB-A 5V⎓3A﹑9V⎓3A﹑12V⎓2.5A（Max）

BP/D-Tap 10A（Max）

8V-OUT 8V⎓3A（Max）

12V-OUT 12V⎓3A（Max）

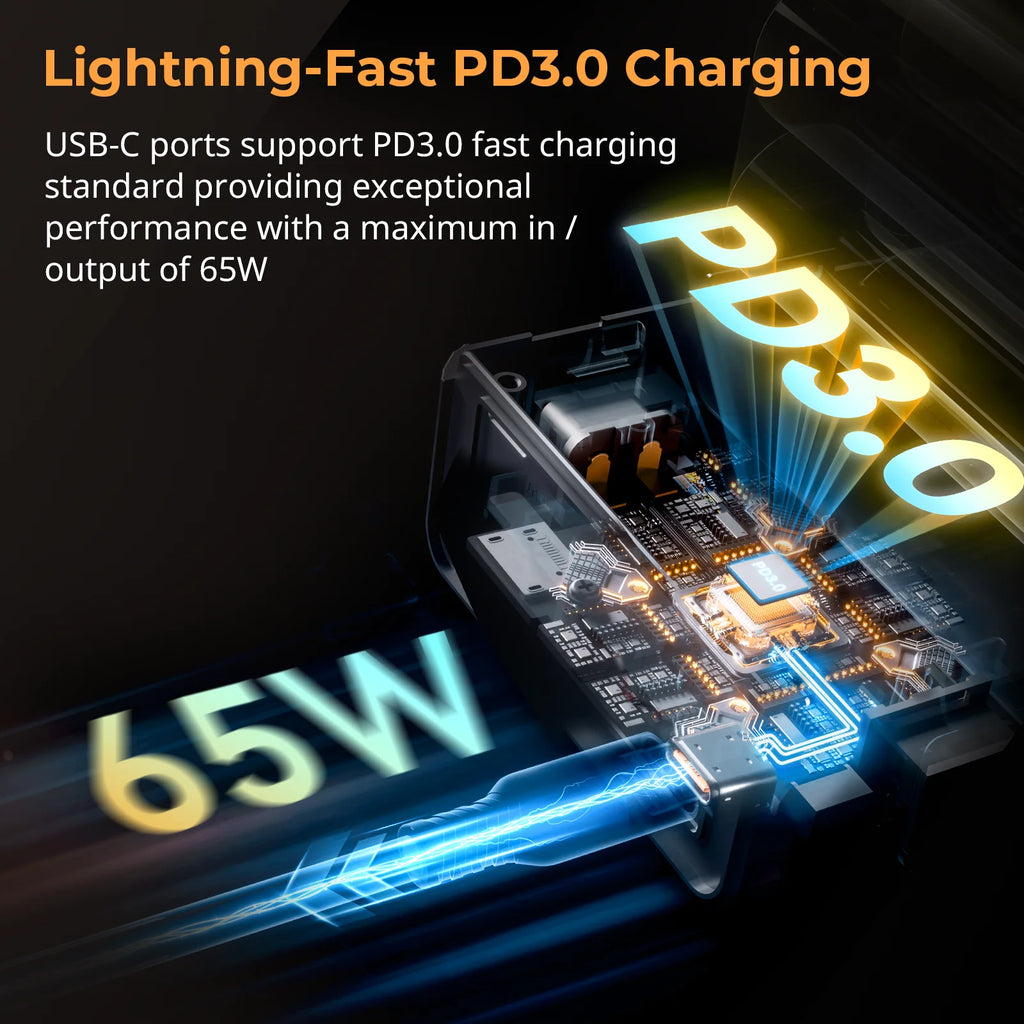

Charging Protocols USB-C PD3.0 / QC2.0 / QC3.0 / PPS / DCP-1.5A / APPLE-2.4A

USB-A QC2.0 / QC3.0 / DCP-1.5A / APPLE-2.4A

Cutoff Voltage 11.2V

Operating Temperature -15℃ to 60℃

Charging Temperature 0℃ to 45℃

Optional Charging Method BP port charger, 16.8V D-Tap charger, USB-C

Button Function

Single-Click Turn off the screen at normal brightness

Restore maximum brightness after dimming

Illuminate the screen after shutdown or screen blackout

Double-Click Switch between displaying voltage and power in charging and discharging mode

3-Second Press Press and hold for 3 seconds to forcibly power off the USB-C, USB-A, and DC ports for discharging. Restore port operation by single-clicking or reinserting the plug

Note:

The weight and dimensions are measured manually on the actual product, we appreciate your understanding in case of any discrepancies

IX. Related Products

4292，4293，3579, 3580, 3581, 3016, 2991, 2990, 2987, 2988, 2989, 1846C, 3498, 3497, 3499, 3202B, 3203B, 3204B

X.

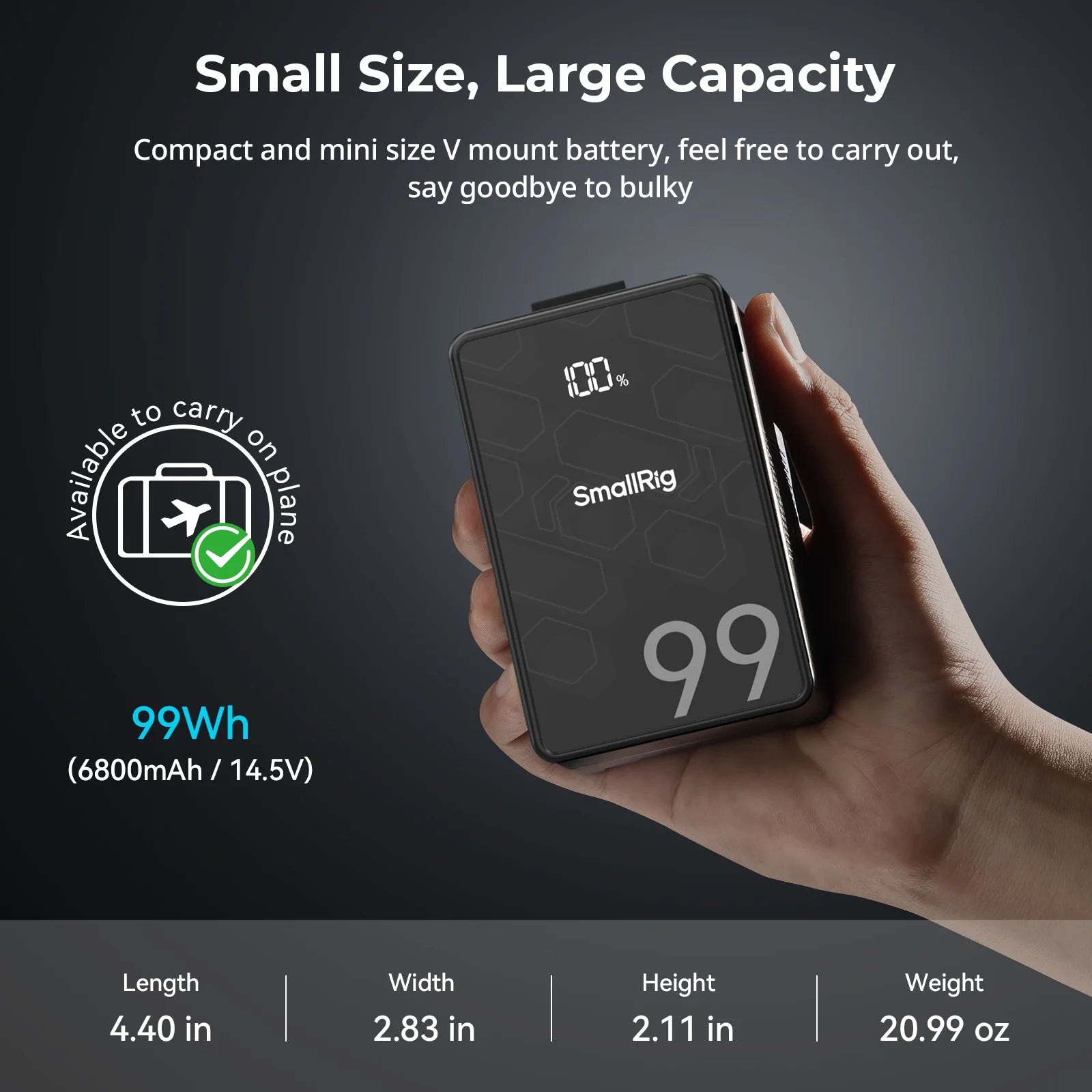

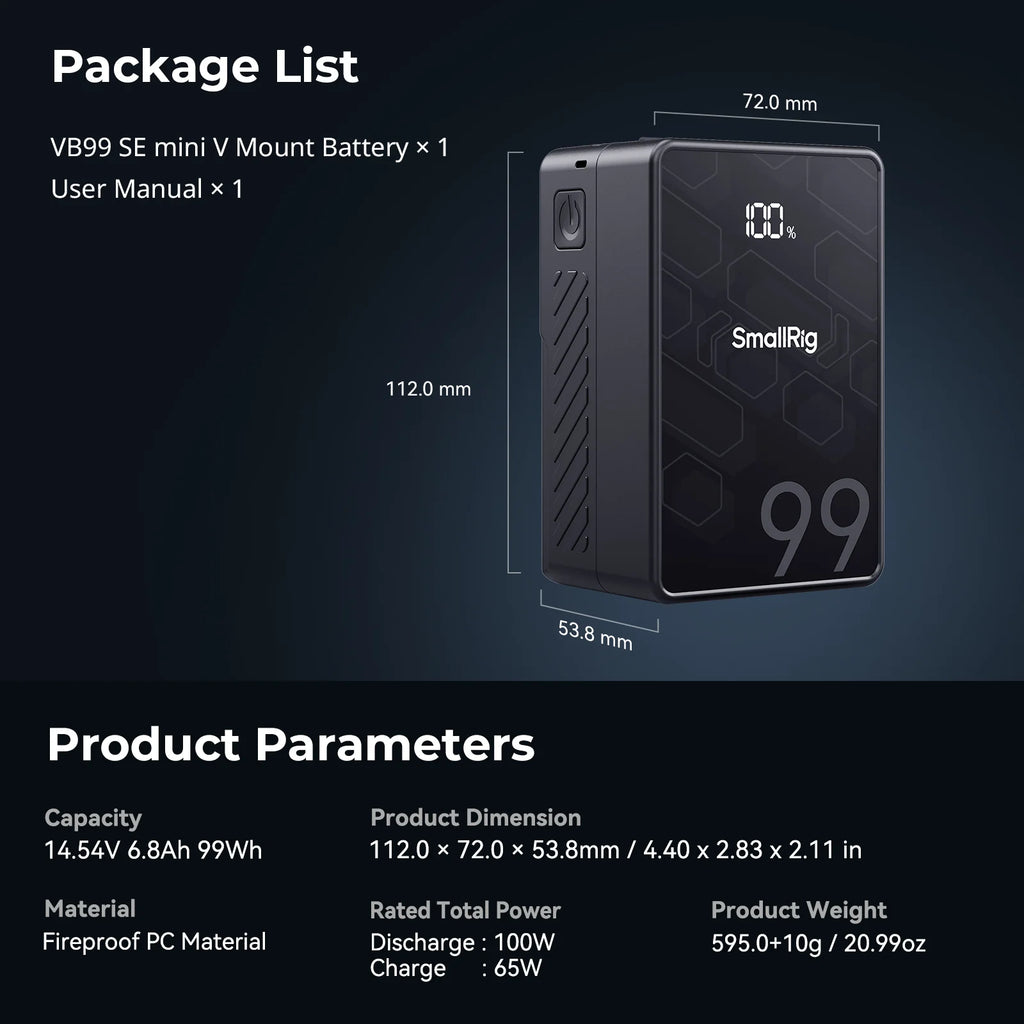

Product Dimensions: 112.0 x 72.0 x 53.8mm / 4.4 x 2.8 x 2.1in

Package Dimensions: 154.0 x 113.0 x 71.0mm / 6.1 x 4.4 x 2.8in

Product Weight: 595.0 ± 10.0g / 21.0 ± 0.4oz

Package Weight: 800.0 ± 10.0g / 28.2 ± 0.4oz
