SPECIFICATIONS

Aspect Ratio: 16:9

Audio: Stereo Headphone

Backlight Type: LED Display Screen

Brightness: 450cd/m²

Contrast Ratio: 1000:1

Input/Output: HDMI, 4K UHD 3840x2160p

Install Way: 1/4-20 thread points

Pixel Pitch: 0.069 (H) x 0.069 (V) mm

Resolution: 1920x1080 pixels

Screen Size: 6" IPS Touch Screen

Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

aspect ratio: 16:9

audio: Stereo Headphone

brand name: FEELWORLD

brightness: 450cd/m²

contrast ratio: 1000:1

feature: touch screen

horizontal viewing angle: 80°/80°(L/R)

input: HDMI, Type-C 5V In

output: ≤8W

panel type: IPS

pixel pitch: 0.069 (H) x 0.069 (V) mm

place of origin: Fujian, China

private mold: Yes

resolution: 1920x1080 pixels

screen size: 6"

screen type: LED

vertical viewing angle: 80°/80°(U/D)

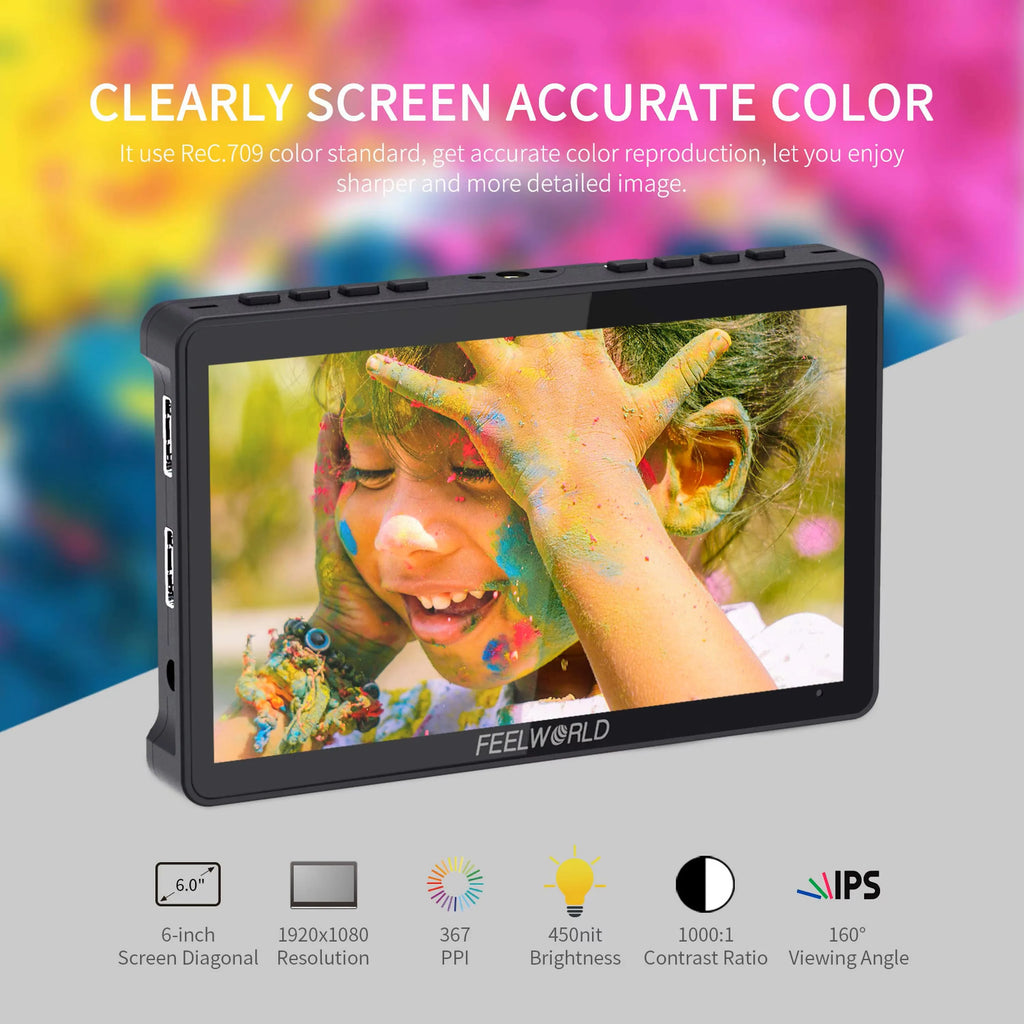

Product Description

Specification

Display Spec

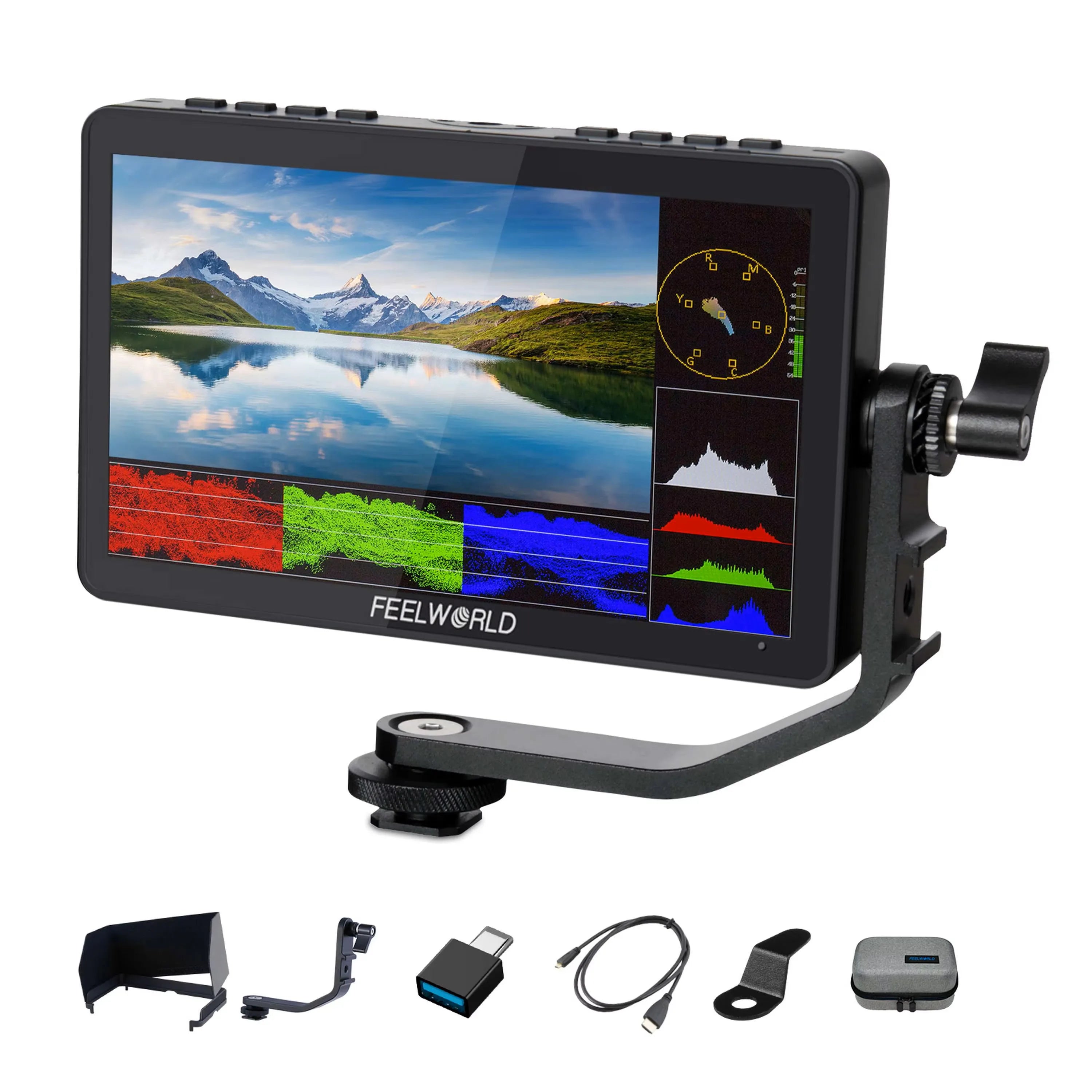

Model	F5 Pro V4
Screen Size	6" IPS Touch Screen
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) x 0.069 (V) mm
Aspect Ratio	16:9
Brightness	450cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI	HDMI
1 X Type-C	5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)

Output
1 X HDMI	HDMI
1 X DC Output	DC Output

Audio

Stereo Headphone

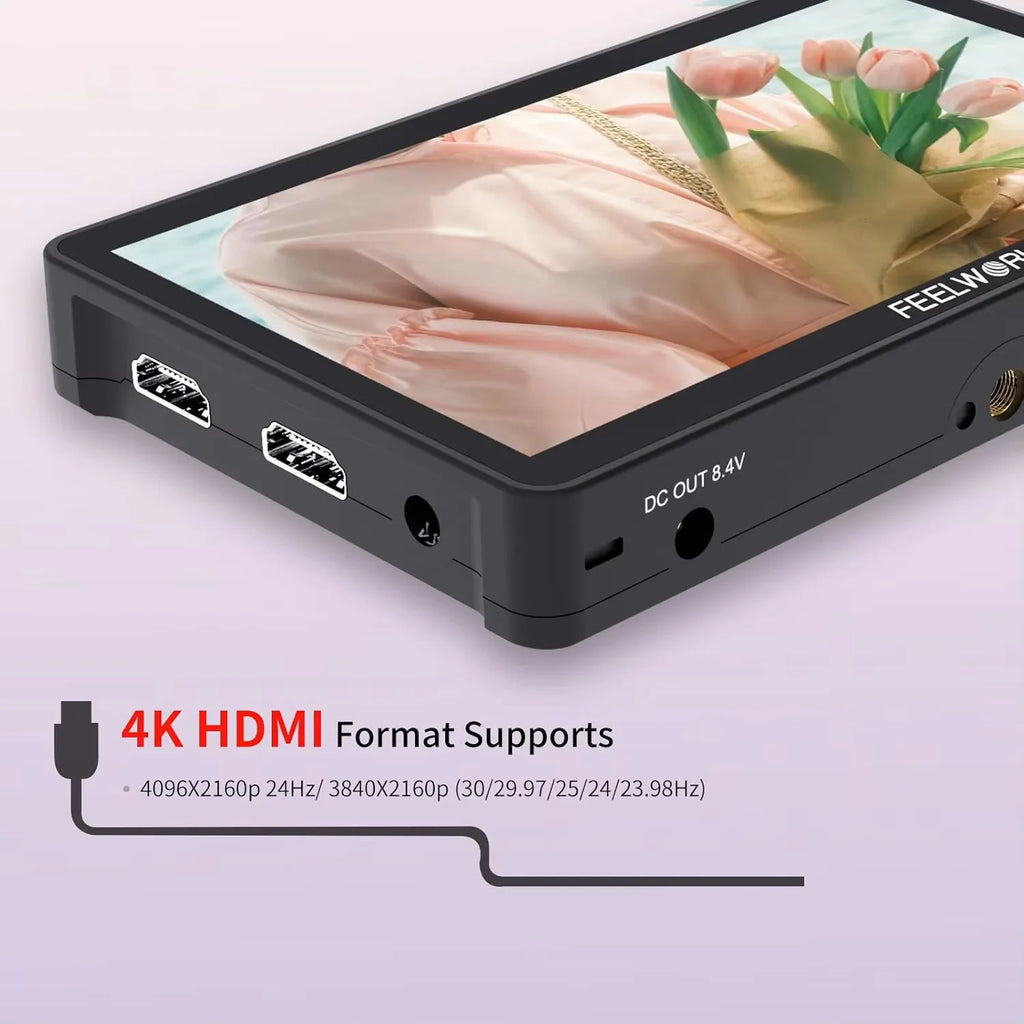

HDMI Input/ Output Support Format
Input Voltage	DC7～24V
Power Consumption	≤8W
Power Connector	DC
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	¼-20 thread points

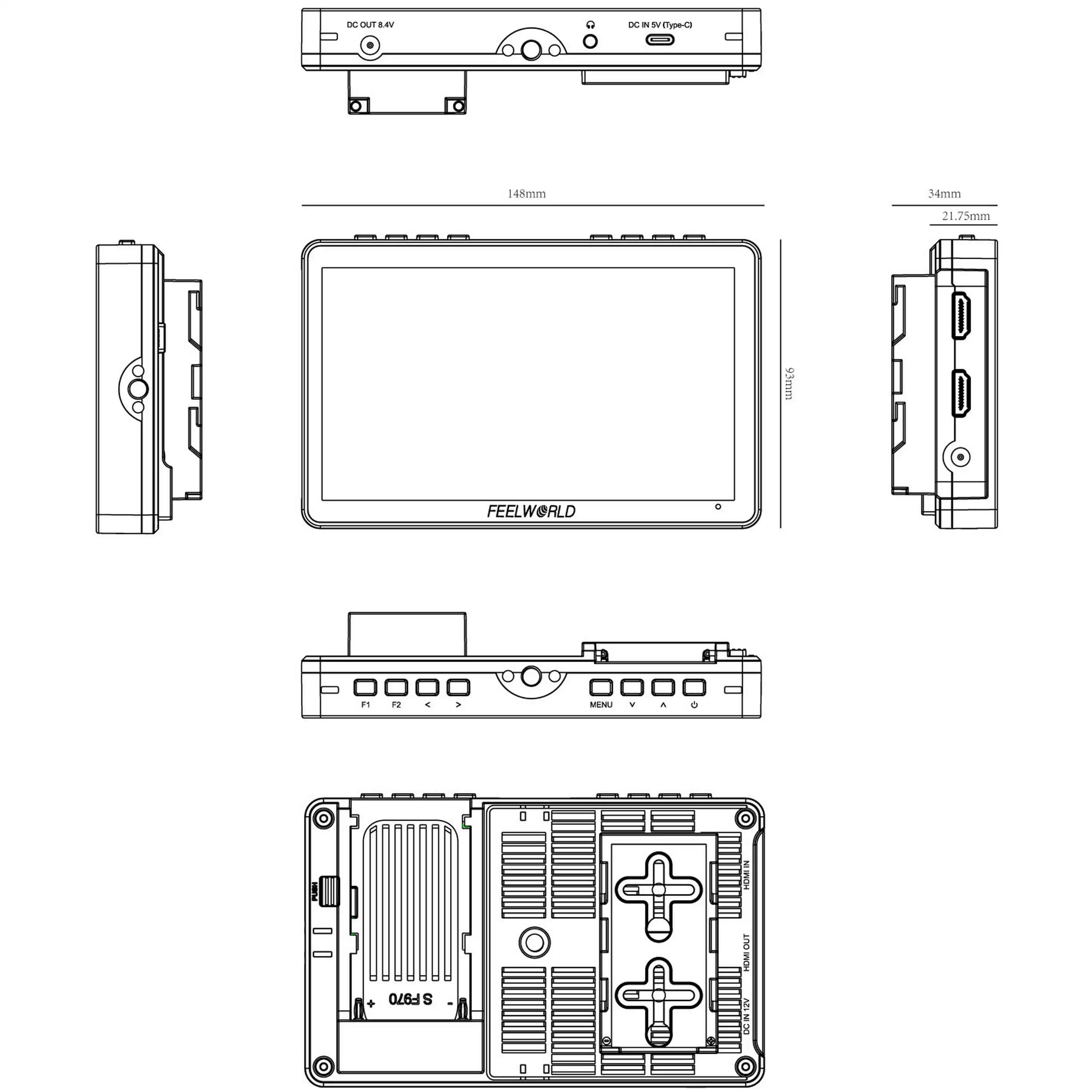

Unit Size	148Lx93Hx20D (mm)
Unit Weight	245g
Color Box Size	186L*124W*80H(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	7.4kgs

Advanced Features

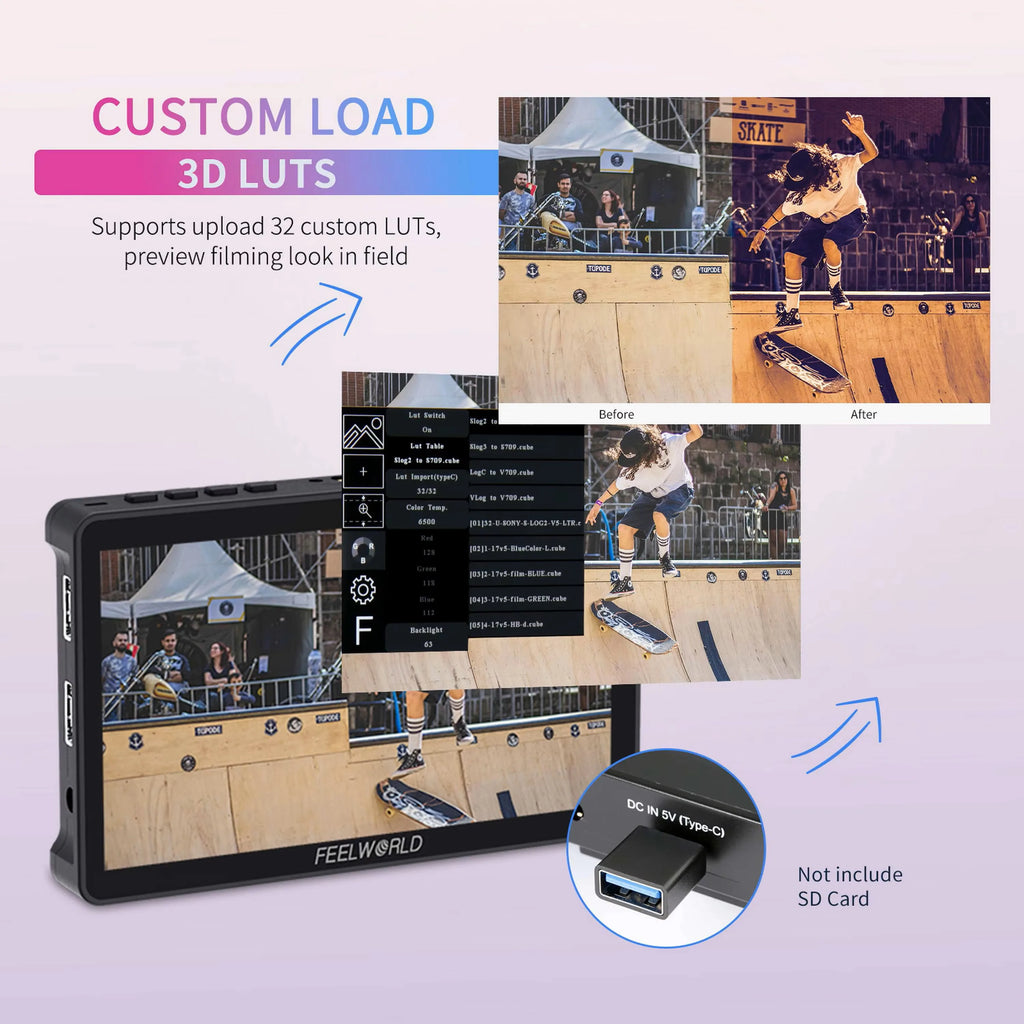

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* All Waves

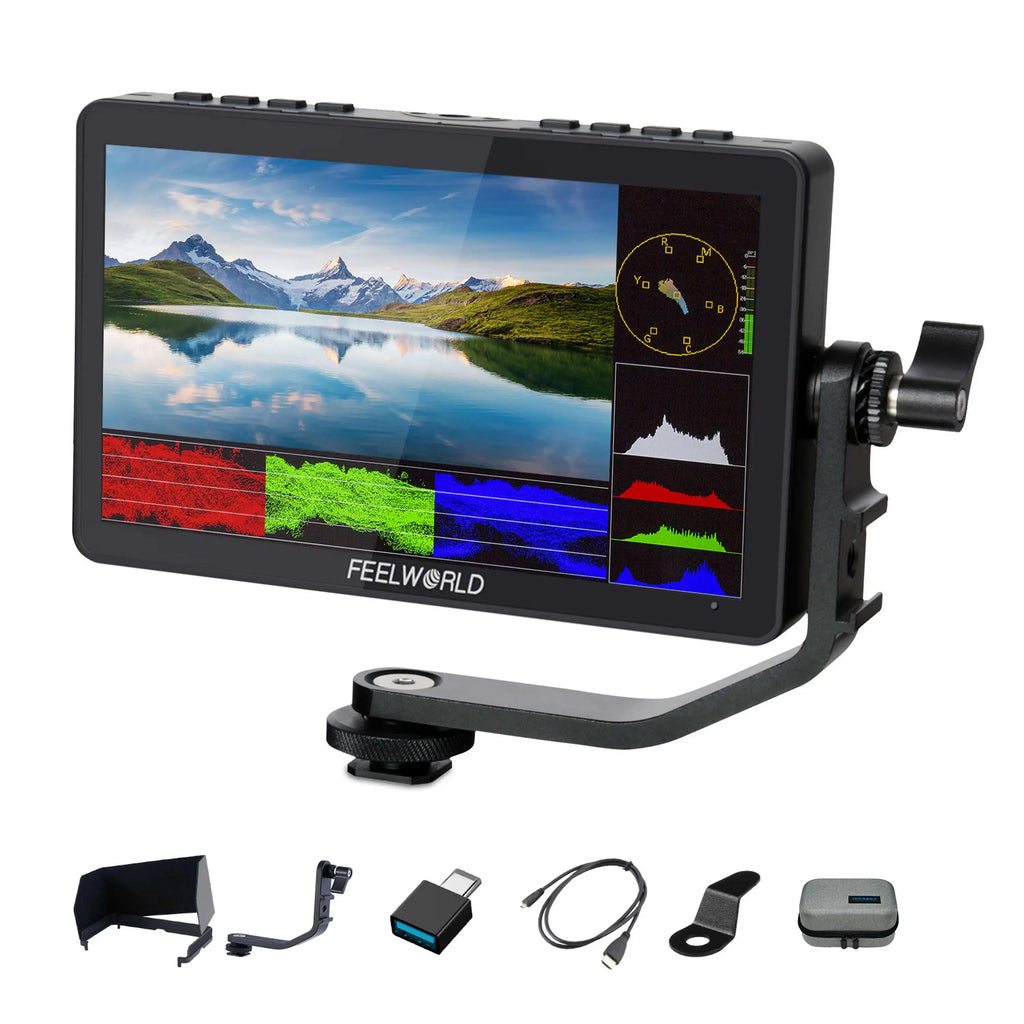

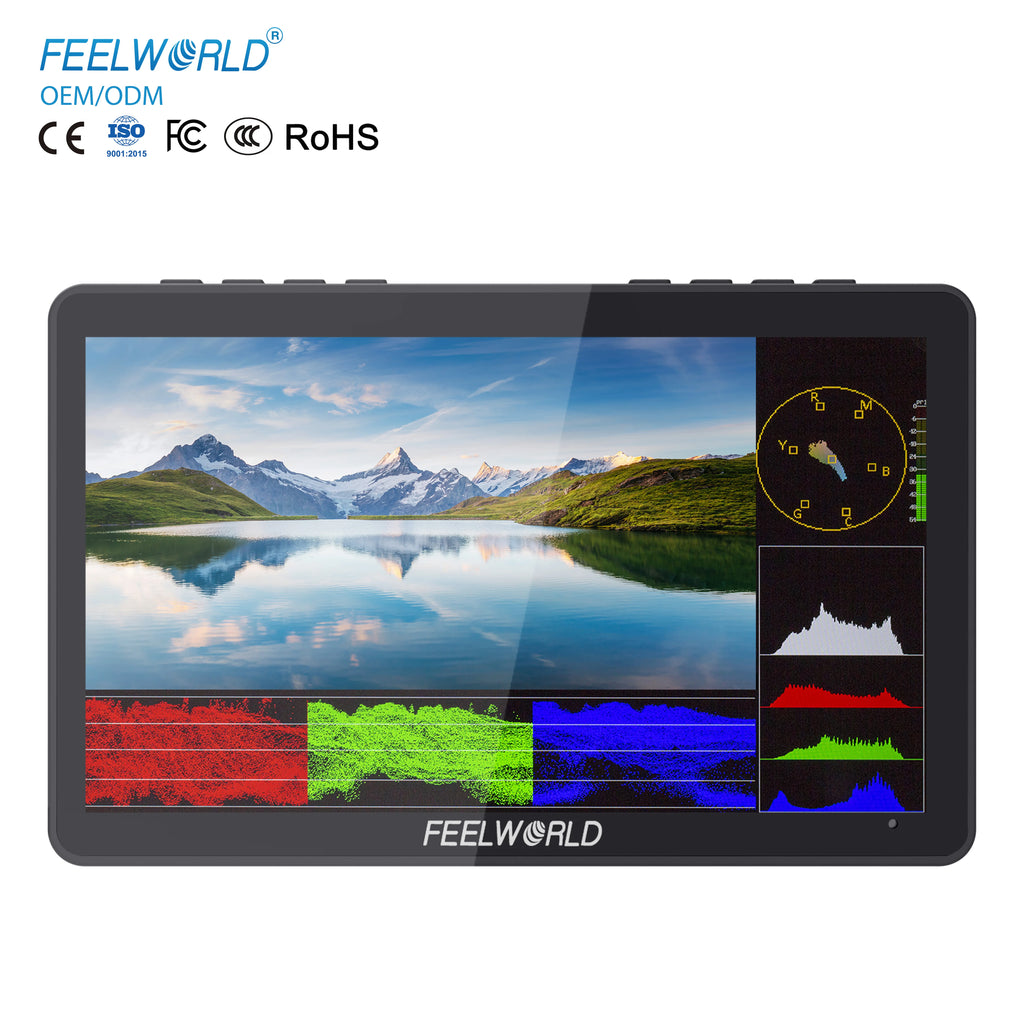

* Waveform (RGB, Y, YUV)

* Histogram(RGB1, Y, RGB2)

* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)

* False Colors

* Zebra Exposure (1-100IRE adjustable)

* Check Field (Red, Green, Blue, Mono)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)

* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)

* Color Temperature Adjustment

* Nine Grid (Zoom one of the images to realize the full screen)

* Zoom (4X, 9X, 16X)

* Aspect Ratio

* Pixel to Pixel

* Zoom All

* U/D Zoom

* L/R Zoom
