SPECIFICATIONS

Aspect Ratio: 16:9

Backlight Type: LED Display Screen

Color Box Size: 186L*124W*80H(mm)

Input Voltage: DC7~24V

Install Way: 1/4"-20 Thread Socket ( Right, Bottom)

Model: LUT5E

Storage Temperature: -30°C~70°C

Unit Size: 142Lx86Hx28D(mm)

Unit Weight: 270g

Working Temperature: -20°C~50°C

audio: 3.5mm Stereo Headphone

brand name: high light

brightness: 1600cd/m²

contrast ratio: 1000:1

feature: high light

horizontal viewing angle: 80°/80°(L/R)

input: HDMI

output: ≤9W

panel type: IPS

pixel pitch: 0.069 (L) x 0.069(W) (mm)

place of origin: Fujian, China

resolution: 1920x1080

screen size: 5.5"

screen type: LED

vertical viewing angle: 80°/80°(U/D)

Product Description

Specification

Display Spec
Model	LUT5E

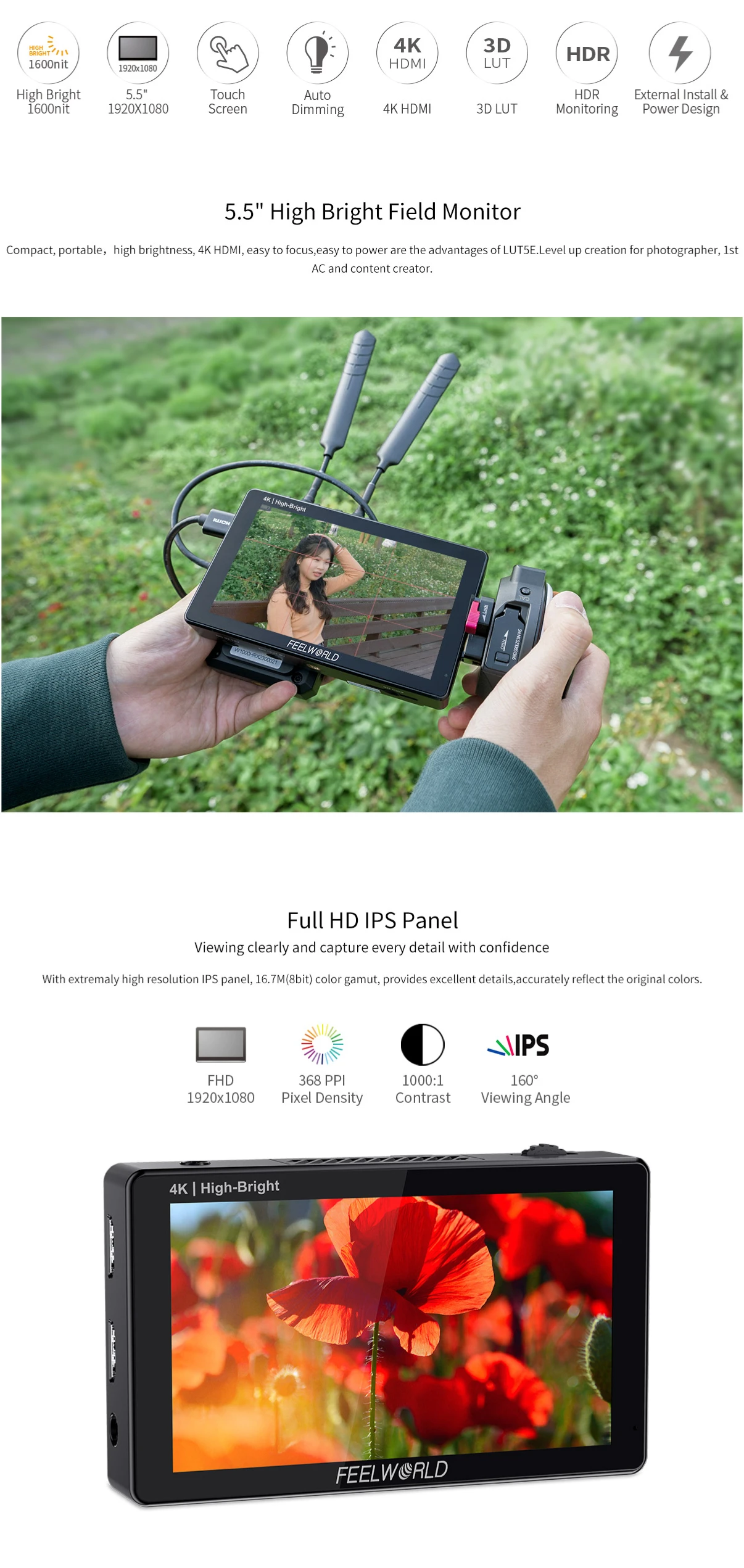

Screen Size	5.5" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (L) x 0.069(W) (mm)
Aspect Ratio	16:9
Brightness	1600cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI	HDMI

Output
1 X HDMI	HDMI
1 X DC	Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio

3.5mm Stereo Headphone

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General

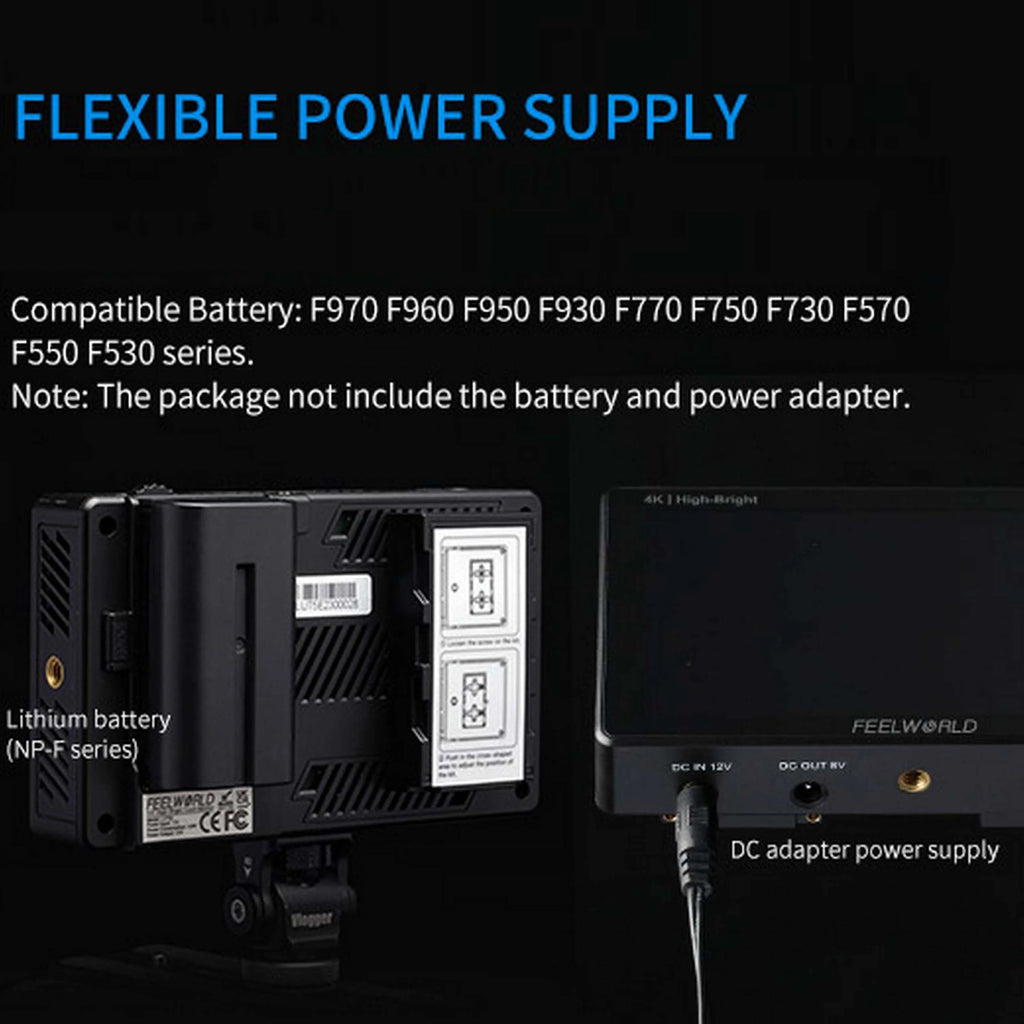

Input Voltage	DC7～24V
Power Consumption	≤9W
Working Temperature	-20°C~70°C
Storage Temperature	-30°C~80°C
Install Way	1/4"-20 Thread Socket ( Right, Bottom)

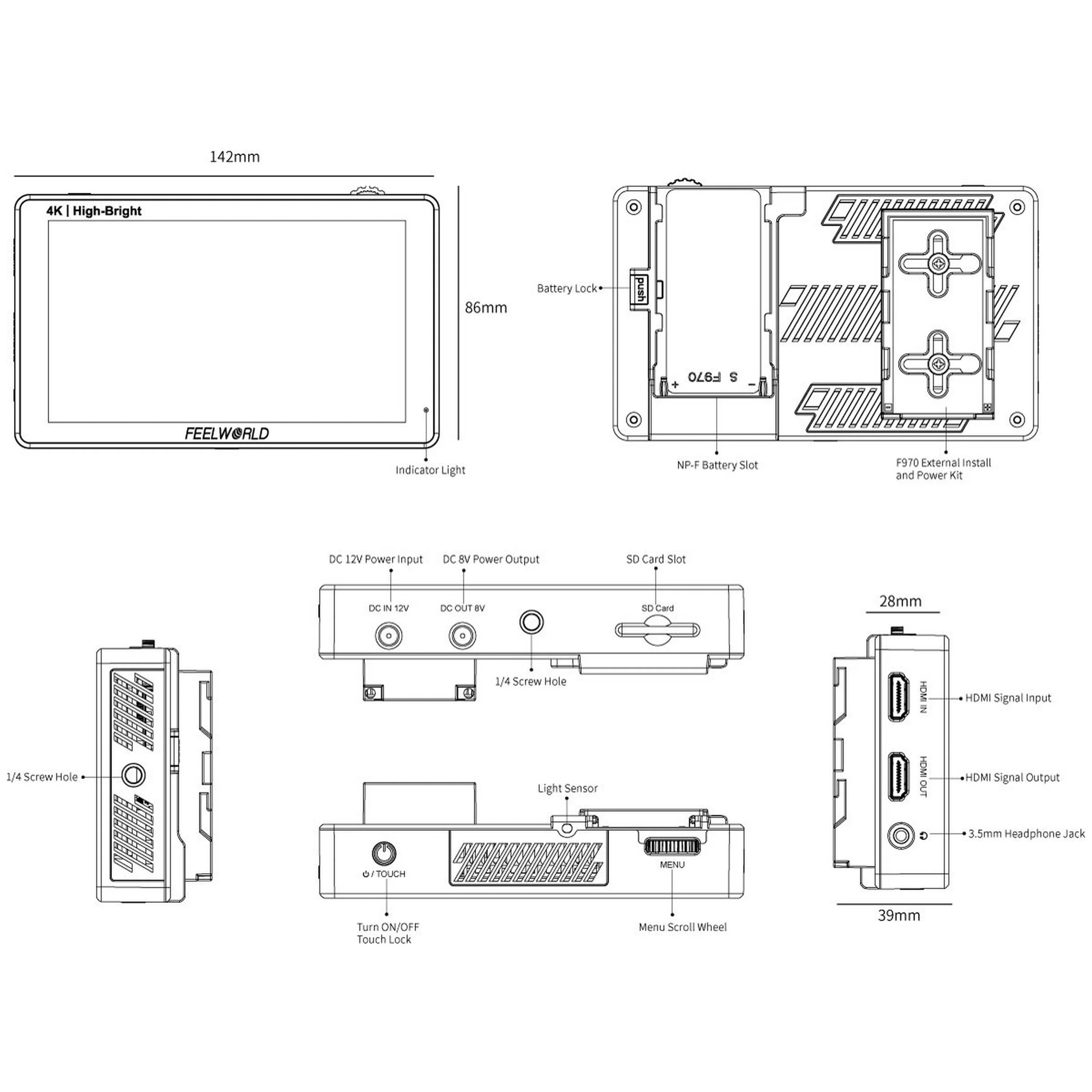

Unit Size	142Lx86Hx28D(mm)
Unit Weight	270g
Color Box Size	186L*124W*80H(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	7.5kgs

Advanced Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

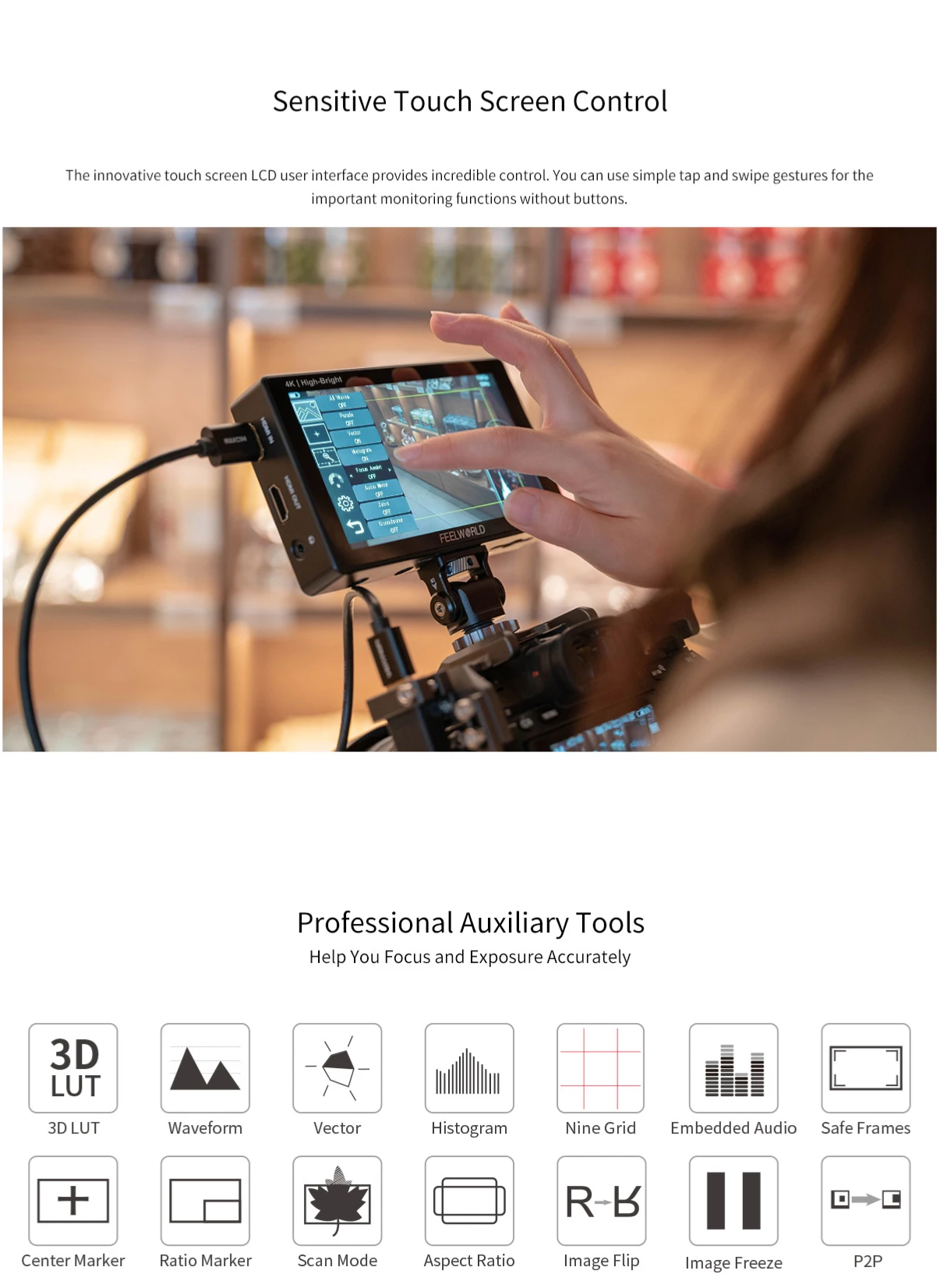

* Support Touch Menu

* Parade (RGB, YUV, Y)

* All Waves

* Vector

* RGB Histogram

* Brightness Histogram

* Embedded Audio

* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)

* False Colors

* Zebra Exposure (1%~100% adjustable)

* Check Field (Red, Green, Blue, Gray)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)

* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

* Marker Color (red, green, blue, white, black, yellow)

* Color Temperature Adjustment (5600K, 6500K, 9300K, user)

* Nine Grid

* Zoom (100%~500%)

* Aspect Ratio

* Pixel to Pixel
