SPECIFICATIONS

Aspect Ratio: 16:9

Backlight: LED

Backlight Type: LED Display Screen

Brightness: 450cd/m²

Contrast Ratio: 1000:1

HDMI Support Format: 4096*2160p(24Hz)

Input/output: HDMI X1, SDI X1

Install Way: 1/4"-20 Thread Socket ( Right, Top, Bottom)

Pixel Pitch: 0.069 (H) * 0.069 (V) (mm)

Resolution: 1920x1080 pixels

Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

audio: 3.5mm Stereo Headphone

brand name: FEELWORLD

brightness: 450cd/m²

contrast ratio: 1000:1

feature: touch screen

horizontal viewing angle: 80°/80°(L/R)

input: 1*HDMI, 1*SDI, Type-C, DC IN 12V

output: ≤9W

panel type: IPS

pixel pitch: 0.069 (H) * 0.069 (V) (mm)

place of origin: Fujian, China

resolution: 1920x1080 pixels

screen size: 6"

screen type: touch screen monitor

vertical viewing angle: 80°/80°(U/D)

Product Description

Specification

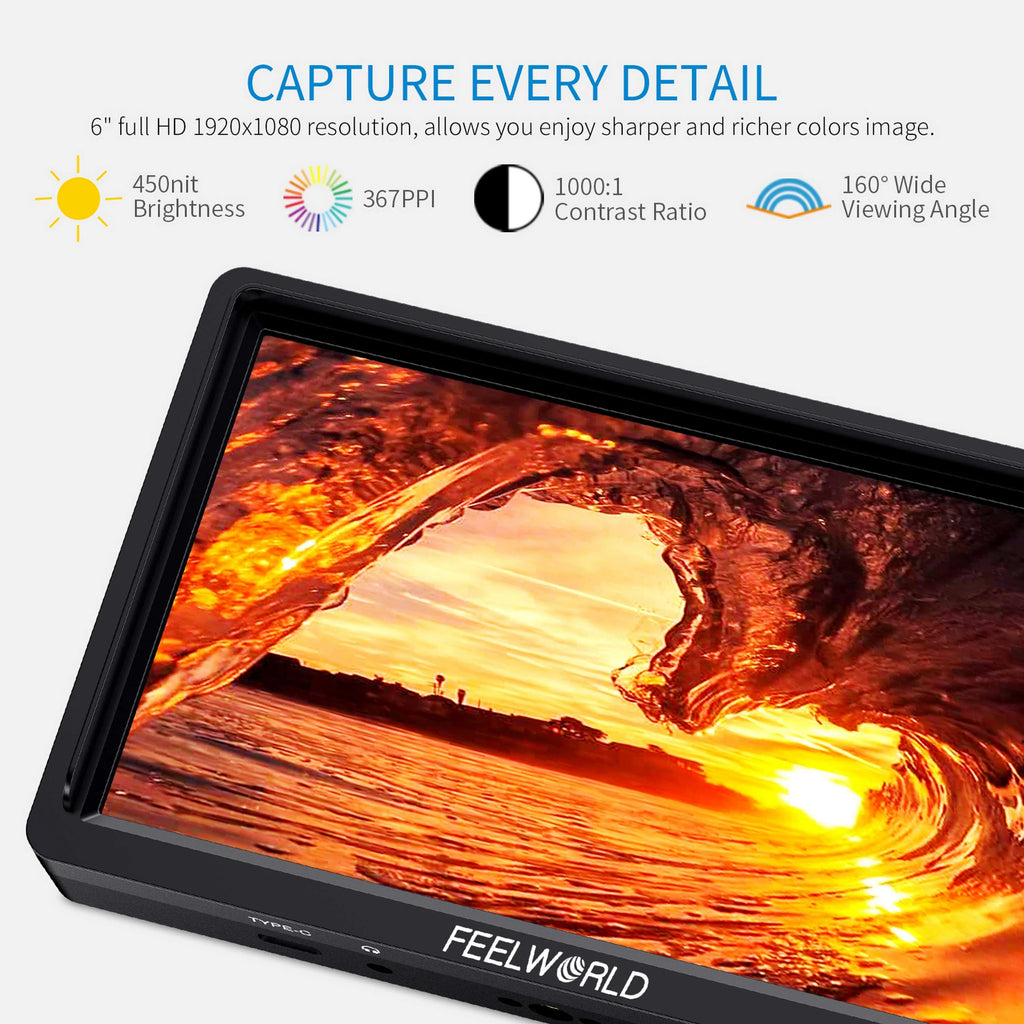

Display Spec
Model	FW568S
Screen Size	6" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) (mm)
Aspect Ratio	16:9
Brightness	450cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI	HDMI
1 X SDI	3G-SDI
1 X Type-C	5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply)

Output
1 X HDMI	HDMI
1 X SDI	3G-SDI
1 X DC	Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor

Audio

3.5mm Stereo Headphone

SDI Support Format

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840x2160p(30/29.97/25/24/23.98 Hz)

4096×2160p(24Hz)

General
Input Voltage	DC7～24V
Power Consumption	≤9W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Socket ( Right, Top, Bottom)

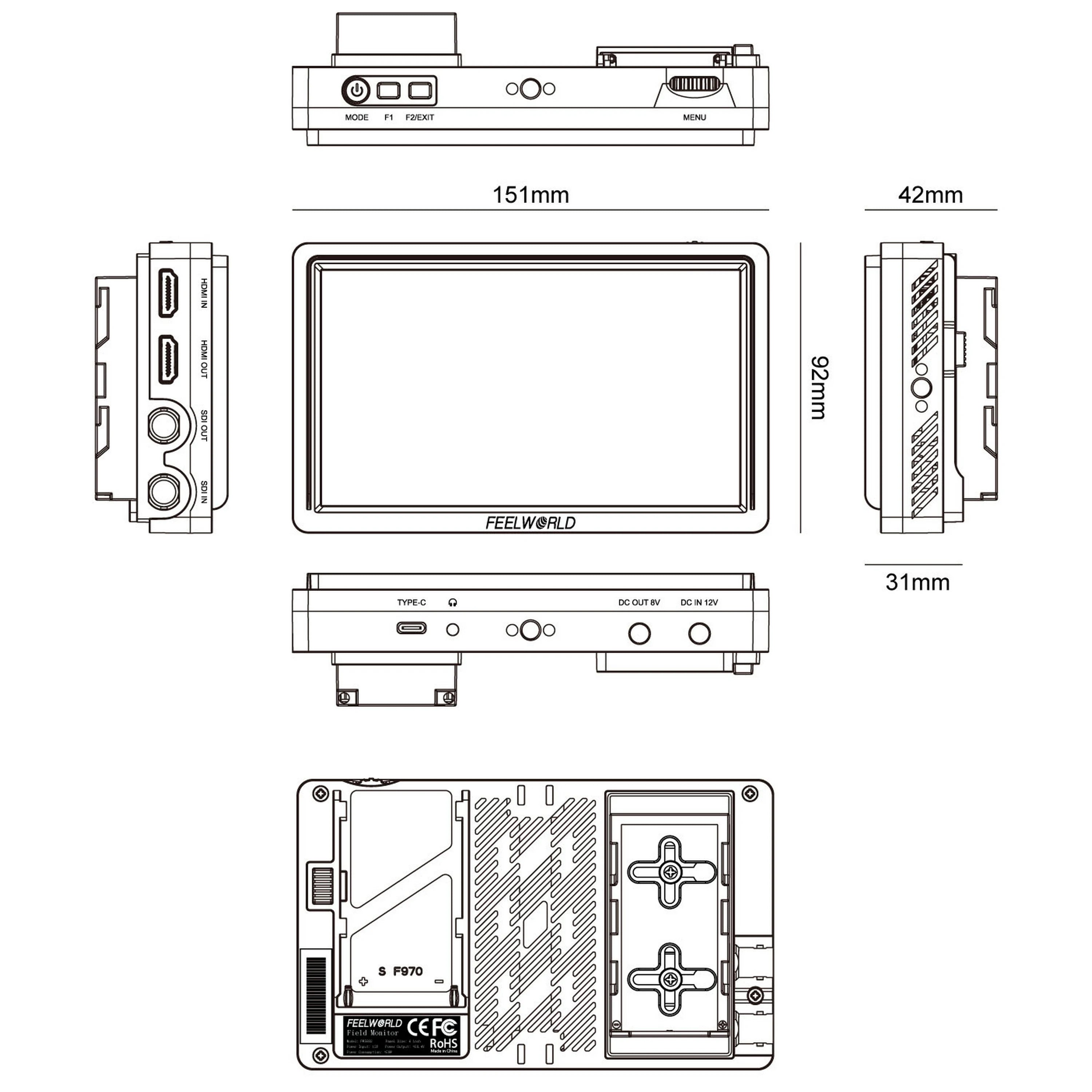

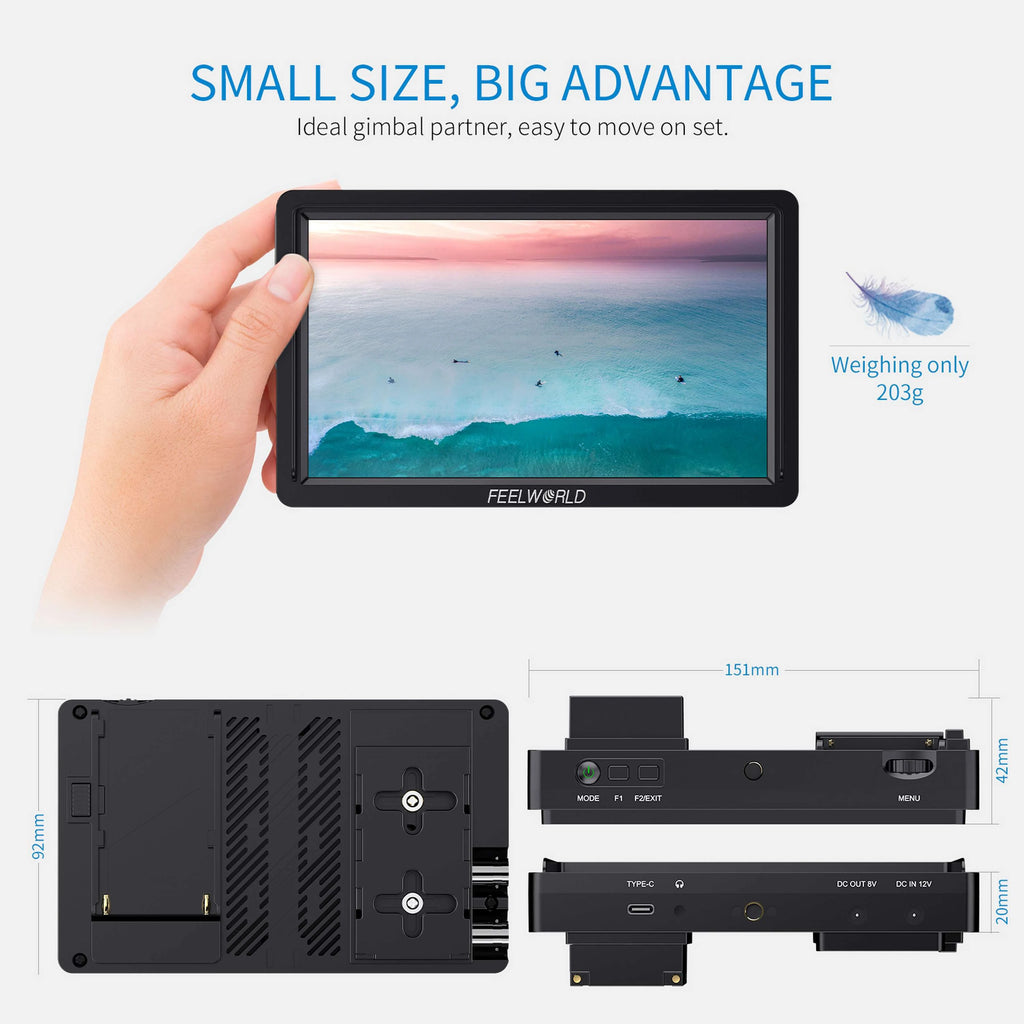

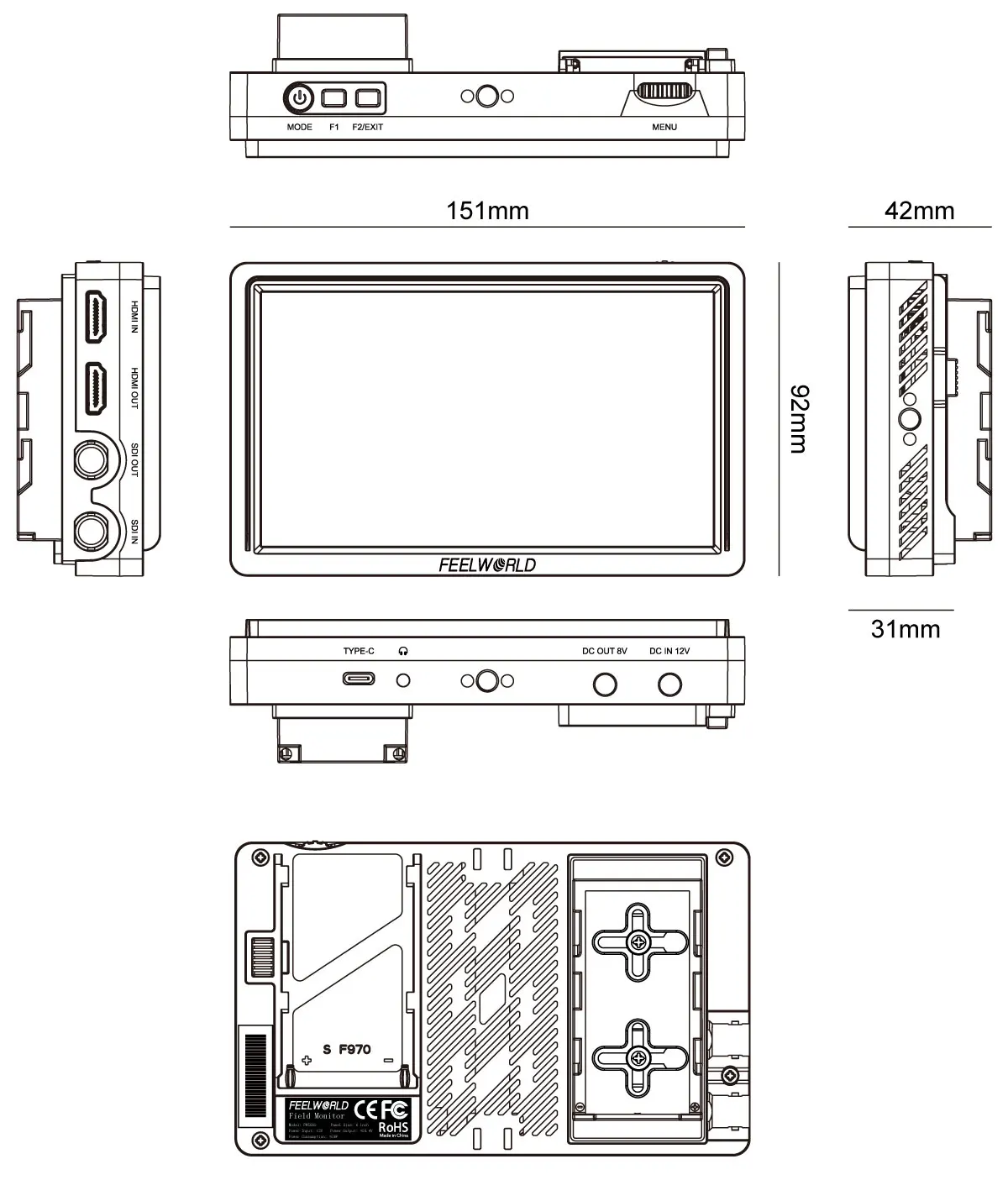

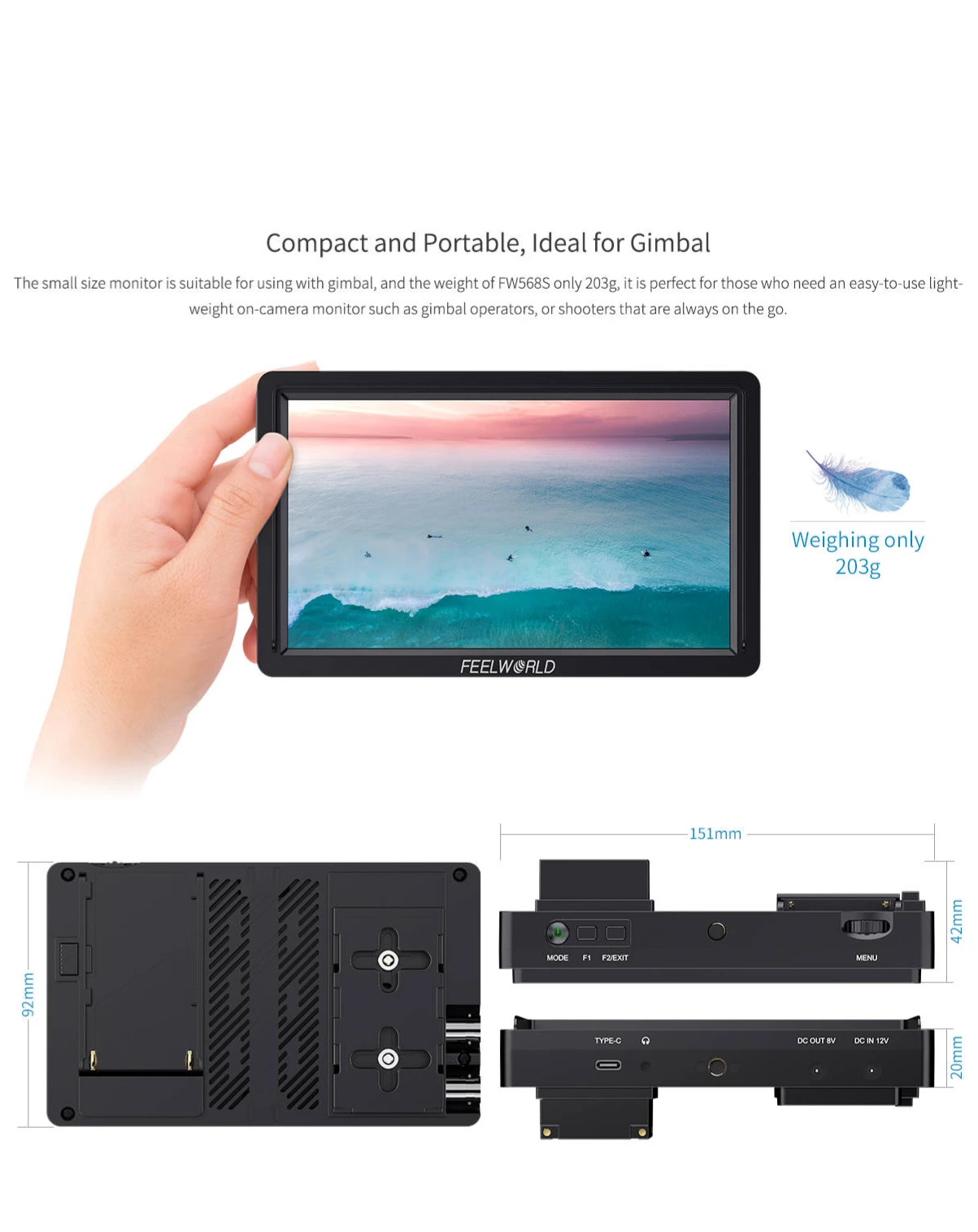

Unit Size	151Lx92Hx31.4D(mm)
Unit Weight	203g
Color Box Size	186L*124W*80H(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)

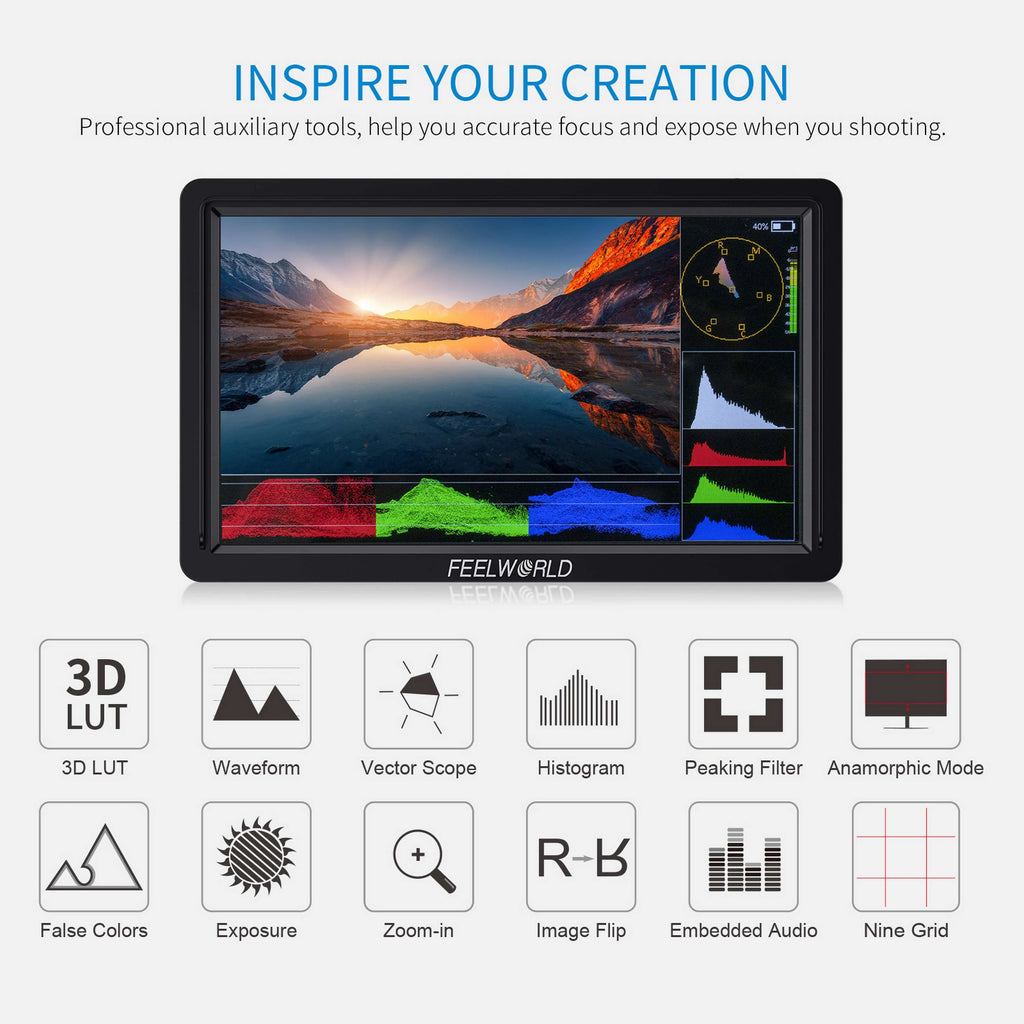

Advanced Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Parade (RGB, YUV, Y)

* All Waves

* Vector

* RGB Histogram

* Brightness Histogram

* Embedded Audio

* Peaking Focus (red, green, blue,three peaking colors optional; 1~10 peaking level adjustable)

* False Colors

* Zebra Exposure (1%~100% adjustable)

* Check Field (Red, Green, Blue, Mono)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.33X、1.6X、2.0X、2.0X MAG)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)

* Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)

* Marker Color (red, green, blue, white, black, yellow)

* Color Temperature Adjustment (5600K, 6500K, 9300K, user)

* Nine Grid

* Zoom (100%~200%)

* Aspect Ratio

* Pixel to Pixel
