SPECIFICATIONS

Aspect Ratio: 16:9

Backlight Type: LCD

Color Box Size: 186L*124W*80H(mm)

Input Voltage: DC7~24V

Install Way: 1/4-20 thread points (bottom, right side)

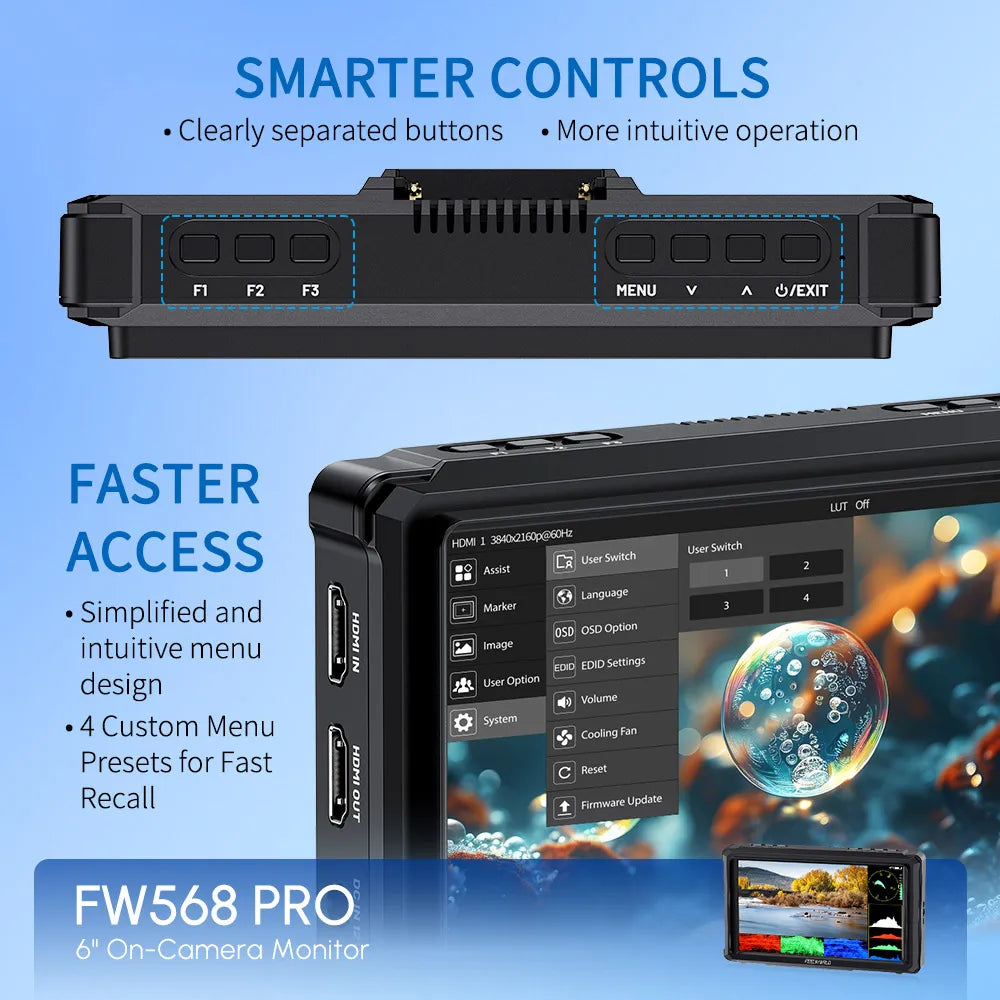

Model: FW568 PRO

Storage Temperature: -10°C~60°C

Unit Size: 161x96x33.3 (mm)

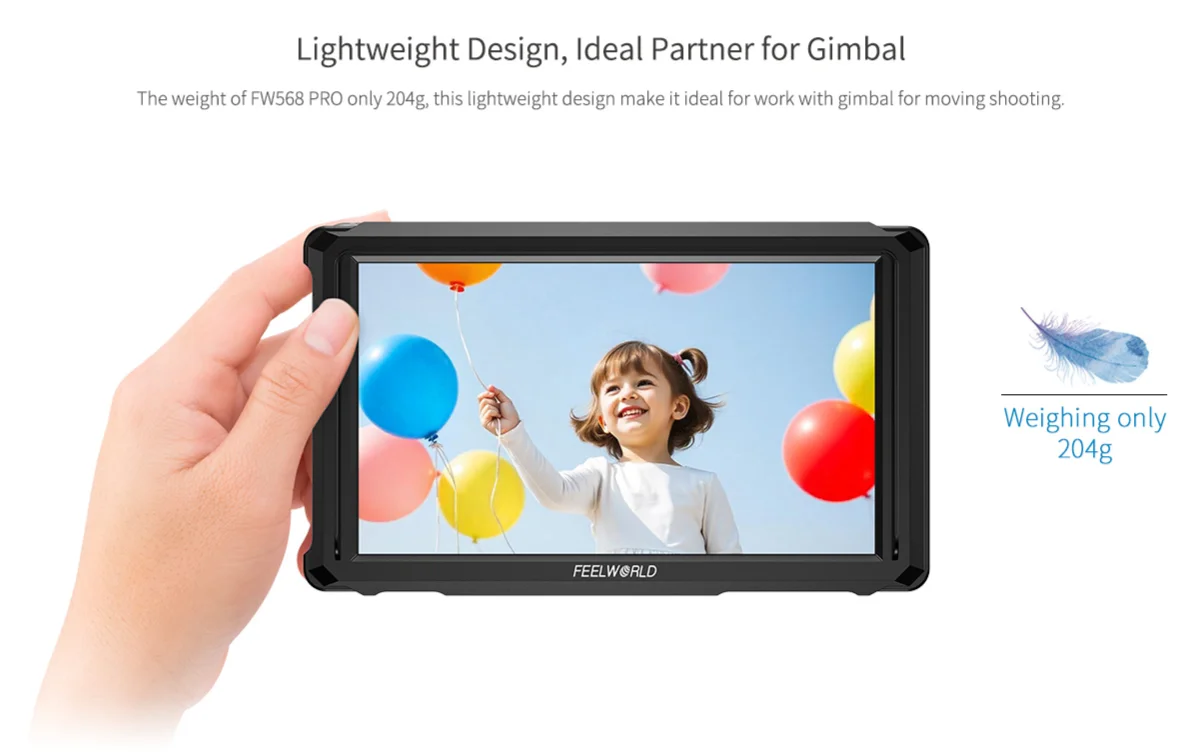

Unit Weight: 204g

Working Temperature: -0°C~50°C

audio: Stereo Headphone

brand name: FEELWORLD

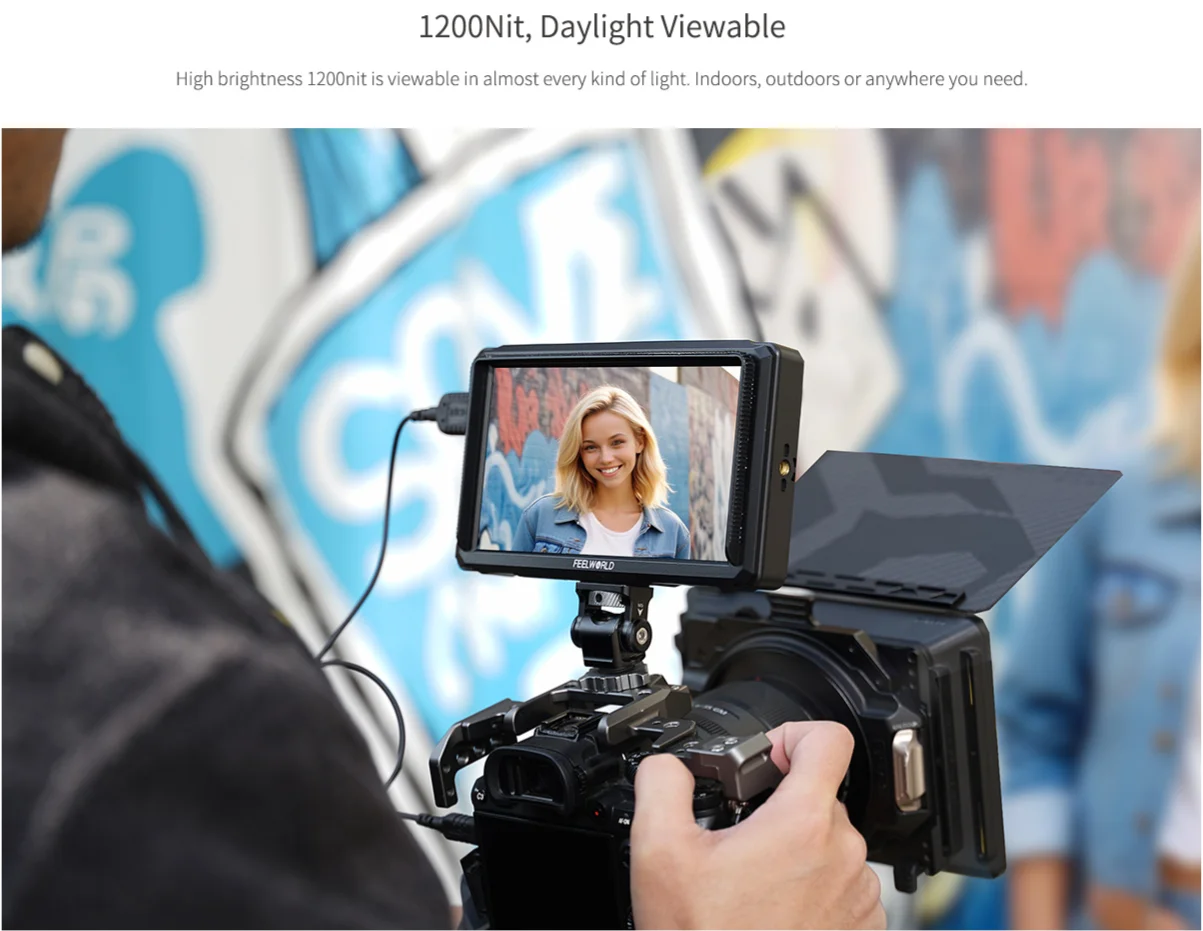

brightness: 1200cd/m²

contrast ratio: 1000:1

feature: 1200nit High Bright Camera DSLR Monitor

horizontal viewing angle: 80°/80°(L/R)

input: HDMI 2.0, Type-C

output: ≤11W

panel type: IPS

pixel pitch: 0.069 (H) X 0.069 (V) mm

place of origin: Fujian, China

private mold: Yes

resolution: 1920x1080

screen size: 6"

screen type: LED

vertical viewing angle: 80°/80°(U/D)

Product Description

Specification

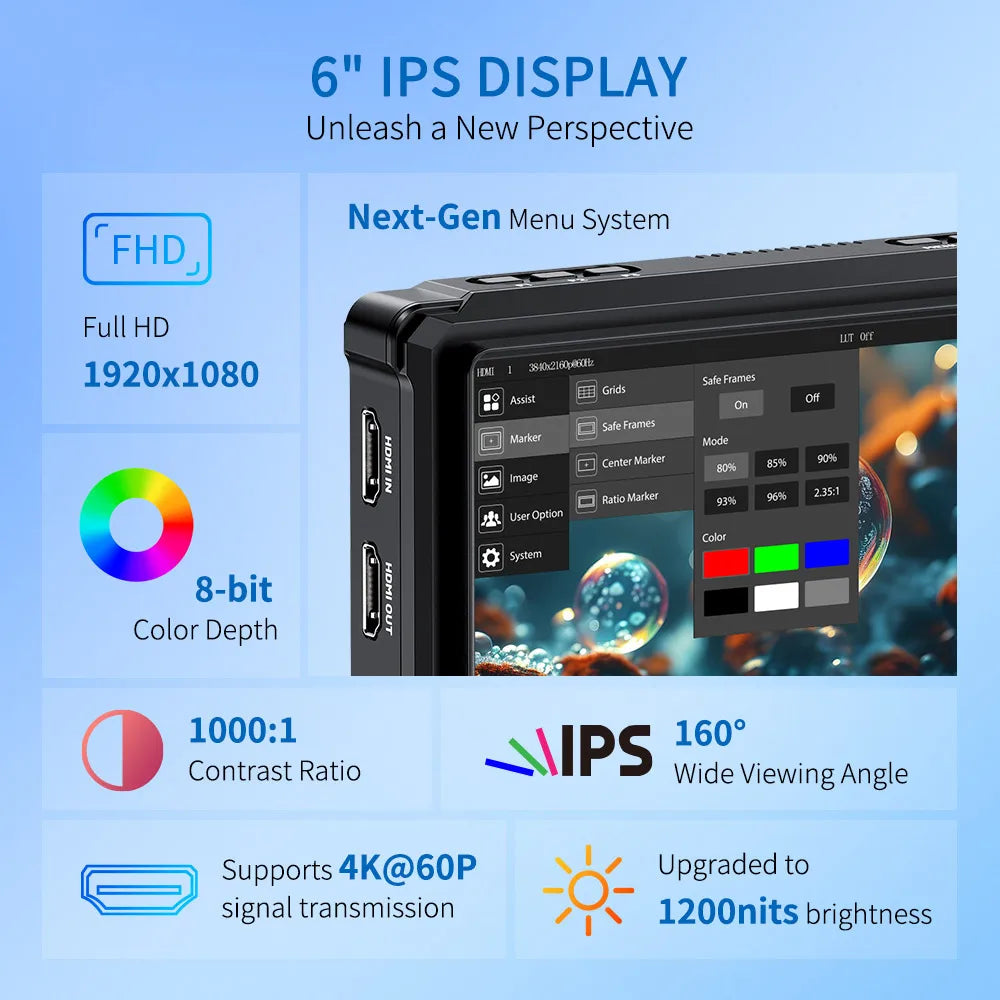

Display Spec
Model	FW568 PRO

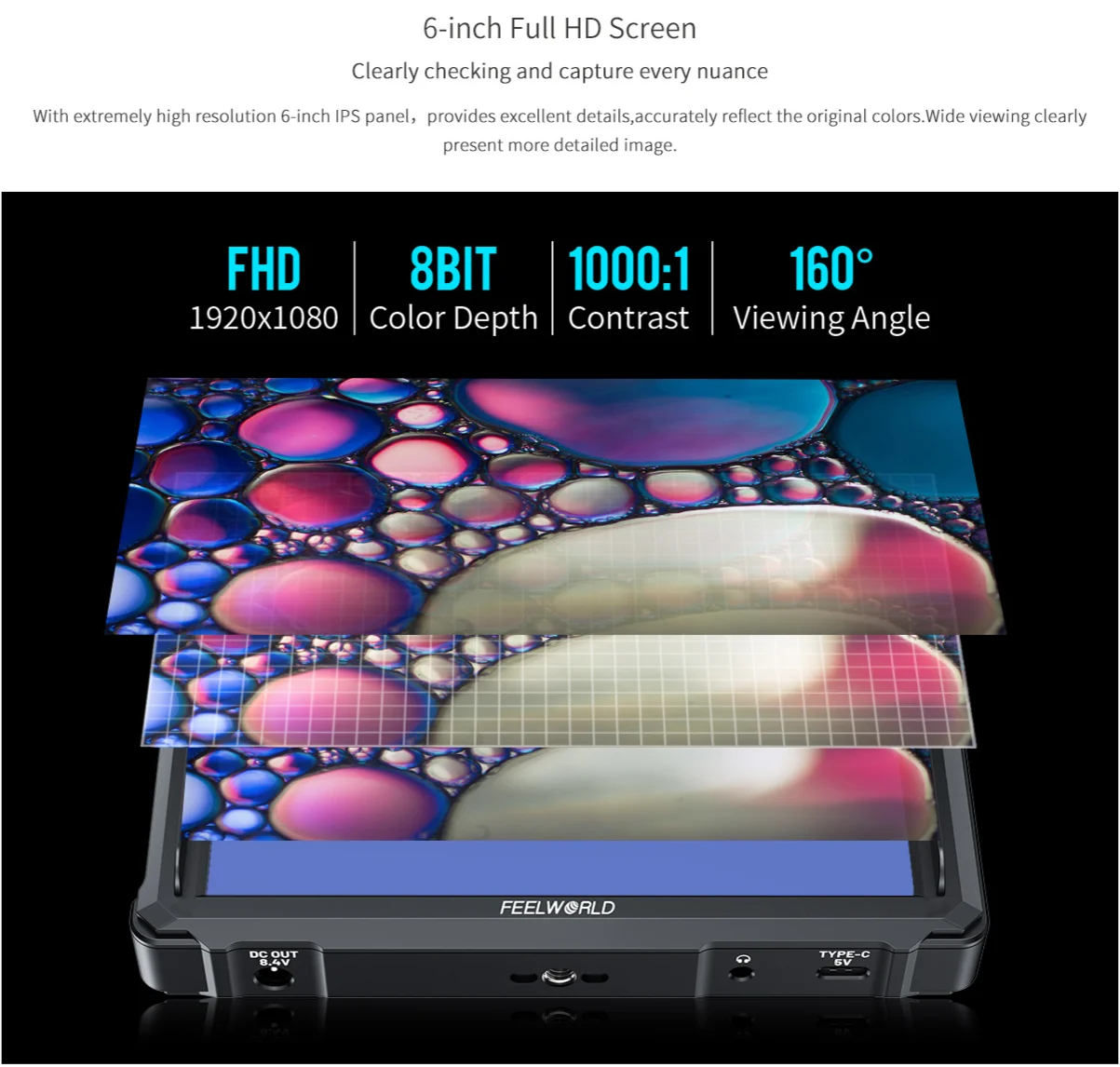

Screen Size	6" IPS
Resolution	1920x1080 pixels
Pixel Pitch	0.069 (H) × 0.069 (V) mm
Aspect Ratio	16:9
Brightness	1200cd/m²
Contrast Ratio	1000:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI	HDMI 2.0
1 X Type-C	1. 5V Type-C (Note: please use more than 5V/2A Type-C power supply); 2. Firmware update/LUT file import

Output
1 X HDMI	HDMI 2.0
1 X DC Output	DC Output

Audio

Stereo Headphone

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

3840×2160p (60/50/30/29.97/25/24/23.98)

4096×2160p (60/50/30/29.97/25/24/23.98)

General
Input Voltage	DC7～24V
Power Consumption	≤11W
Power Connector	DC (suitable for 5.5x2.1mm power plug cable)
Working Temperature	-0°C~50°C
Storage Temperature	-10°C~60°C
Install Way	¼-20 thread points (bottom, right side)

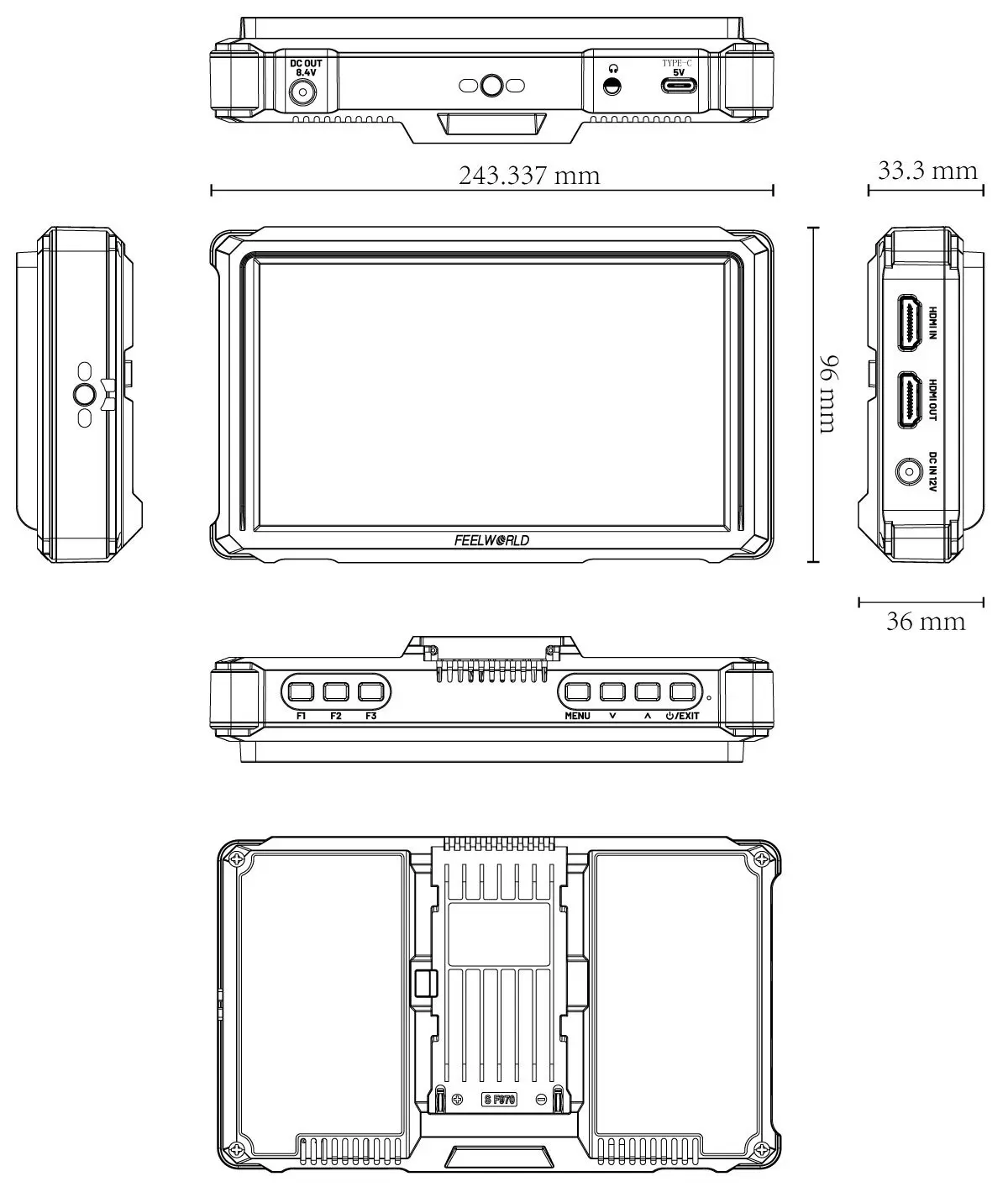

Unit Size	161x96x33.3 (mm)
Unit Weight	204g
Color Box Size	186L*124W*80H(mm)
Outer Carton Qty	10
Outer Carton Size	465*200*326 (mm)
Gross Weight	6.65kgs
