SPECIFICATIONS

Aspect Ratio: 16:10

Backlight Type: LCD

Color Box Size: 222L*158W*76H(mm)

Input Voltage: DC7~24V

Install Way: 1/4"-20 Thread Socket (Top, Left, Right, Bottom)

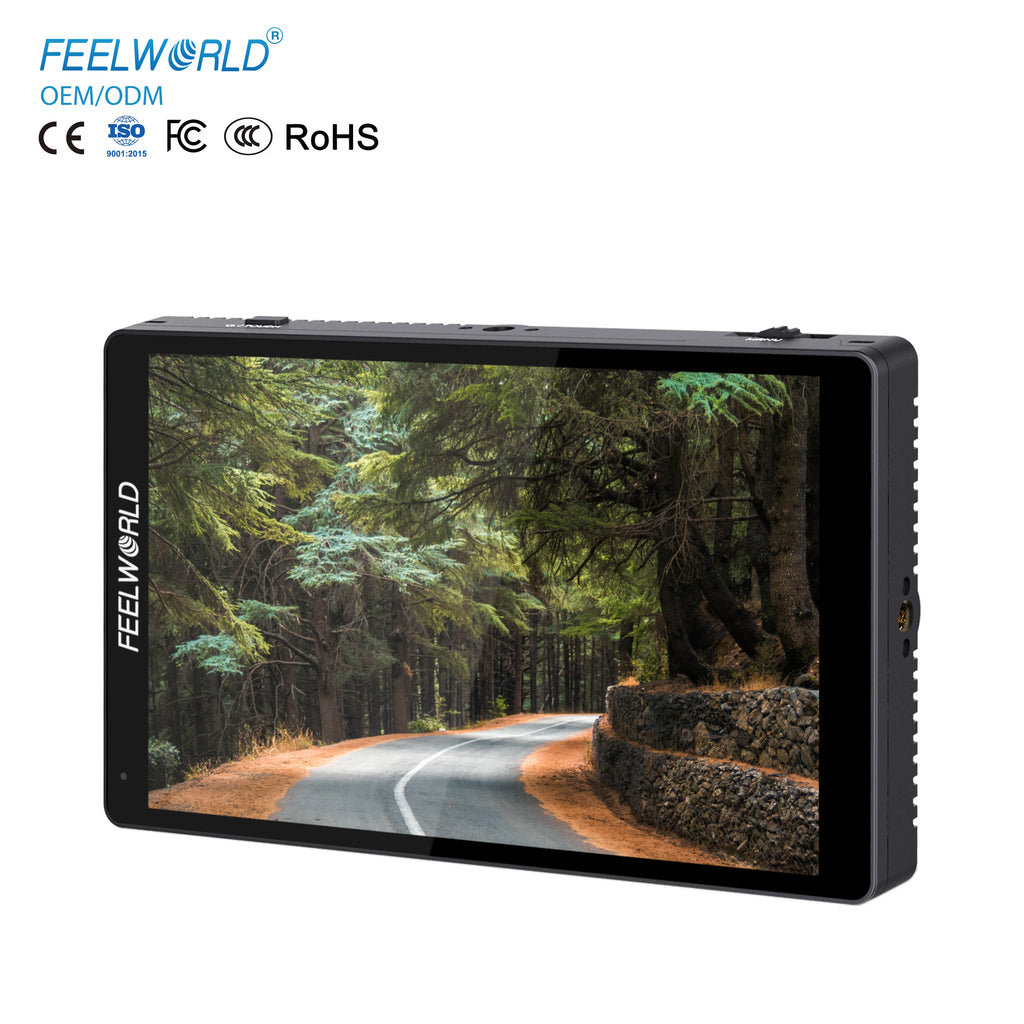

Model: F7 PRO

Storage Temperature: -30°C~60°C

Unit Size: 175Lx105Hx22D(mm)

Unit Weight: 330g

Working Temperature: -20°C~50°C

audio: 3.5mm Stereo Headphone

brand name: FEELWORLD

brightness: 500cd/m²

contrast ratio: 1200:1

feature: HDMI

horizontal viewing angle: 80°/80°(L/R)

input: HDMI

output: ≤9W

panel type: IPS

pixel pitch: 0.07875 (H) x 0.07875 (W) (mm)

place of origin: Fujian, China

private mold: Yes

resolution: 1920x1200

screen size: 7"

screen type: LCD

vertical viewing angle: 80°/80°(U/D)

Product Description

Specification

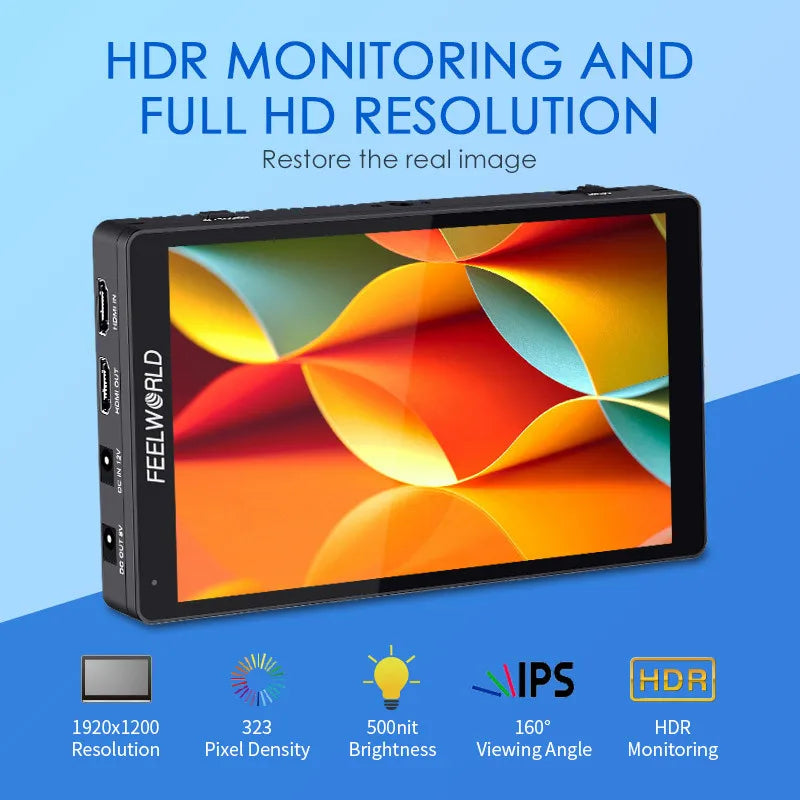

Display Spec.
Model	F7 PRO
Screen Size	7" IPS
Resolution	1920x1200 pixels
Pixel Pitch	0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio	16:10
Brightness	500cd/m²
Contrast Ratio	1200:1
Backlight	LED
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)

Input
1 X HDMI	HDMI
1 X Type-C	DC IN 5V Type-C (please use 5V/2A or more than 2A Type-C power supply)

Output
1 X HDMI	HDMI

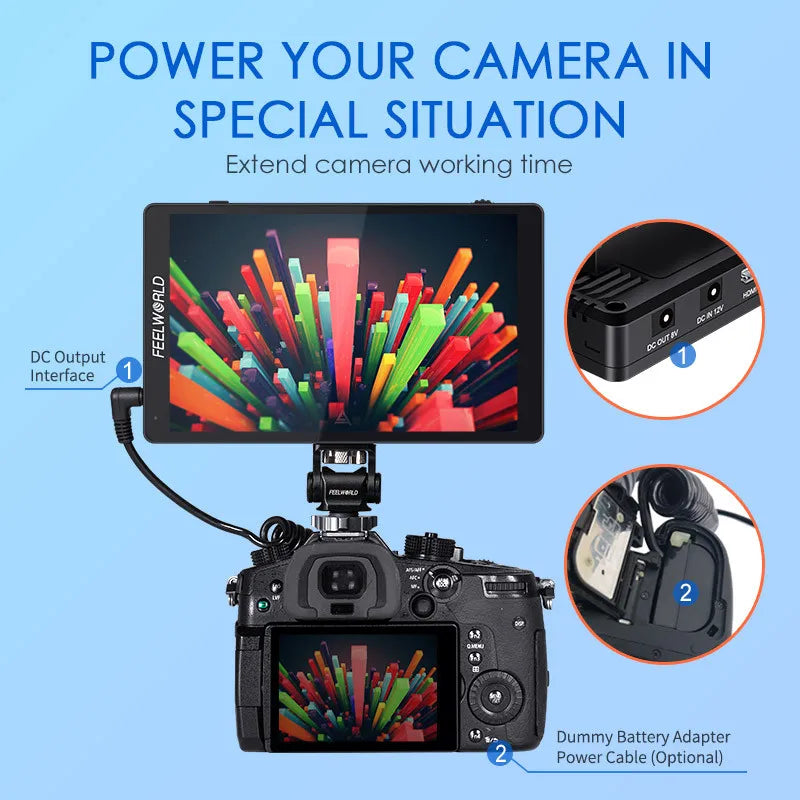

1 X DC	Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio

3.5mm Stereo Headphone

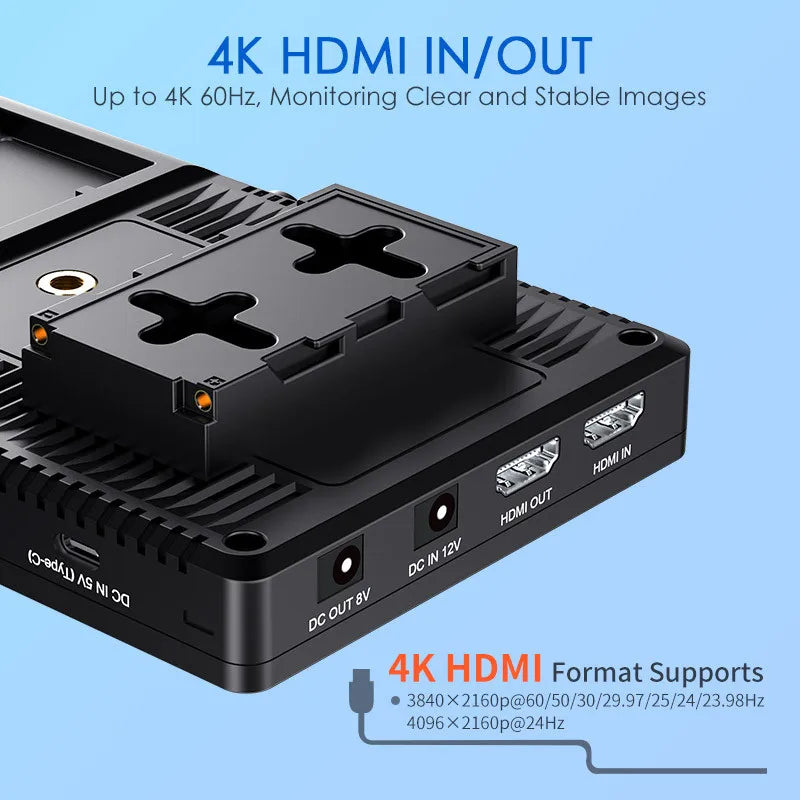

HDMI Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K UHD 3840×2160p (60/50/30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
Input Voltage	DC7～24V
Power Consumption	≤9W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~60°C
Install Way	1/4"-20 Thread Socket (Top, Left, Right, Bottom)
Unit Size	175Lx105Hx22D(mm)
Unit Weight	330g
Color Box Size	222L*158W*76H(mm)
Outer Carton Qty	10
Outer Carton Size	450*234*385 (mm)
Gross Weight	9.5kgs

Advanced Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Support Touch Menu

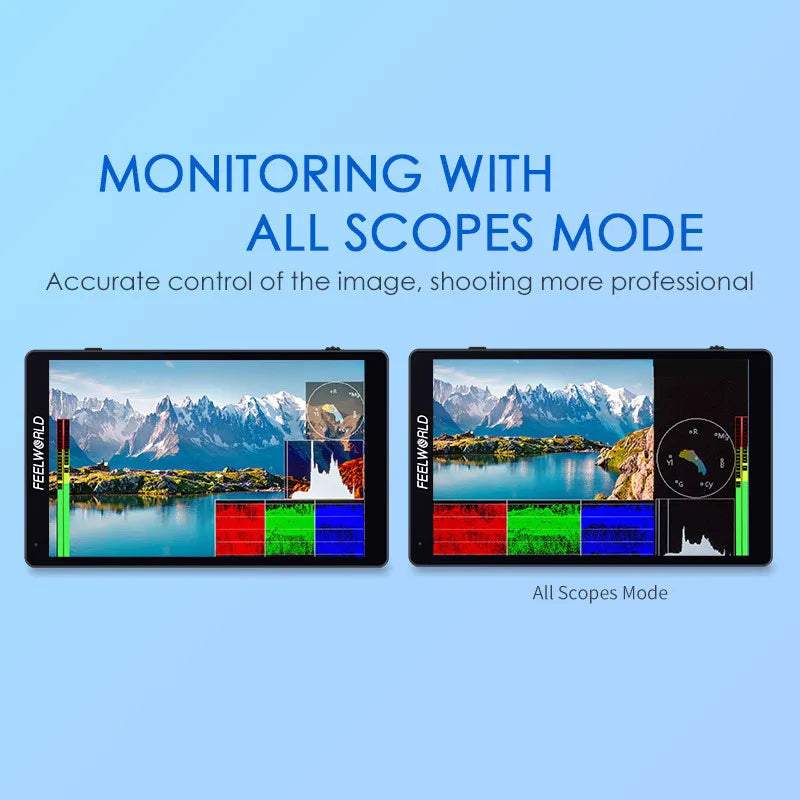

* Parade (RGB, YUV, Y)

* All Waves

* Vector

* RGB Histogram

* Brightness Histogram

* Embedded Audio

* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)

* False Colors

* Zebra Exposure (1%~100% adjustable)

* Check Field (Red, Green, Blue, Gray)

* Scan Mode (Under Scan, Over Scan)

* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

* Image Flip (H, V, H/V)

* Image Freeze

* Center Marker

* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

* Marker Color (red, green, blue, white, black, yellow)

* Color Temperature Adjustment

* Nine Grid

* Zoom (100%~300%)

* Aspect Ratio

* Pixel to Pixel
